Thomas & Betts RBC14-38 Sta-Kon Ring Terminal
Thomas & Betts RBC14-38 Sta-Kon Ring Terminal
Part #:RBC14-38
SKU #: 2241461
Key Features
Part #:RBC14-38
SKU #: 2241461
Brand: Thomas & Betts
Barrel Type: Brazed/Overlapped Seam
Conductor Size: 16 to 14, 16 to 14 AWG
Finish: TiN Coated
Series: RB Series
Specifications: 0.21 in Dia Maximum Insulation, 0.38 in Clearance, Nylon Insulation
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 50 pieces/pack
Thomas & Betts RBC14-38 Sta-Kon Ring Terminal

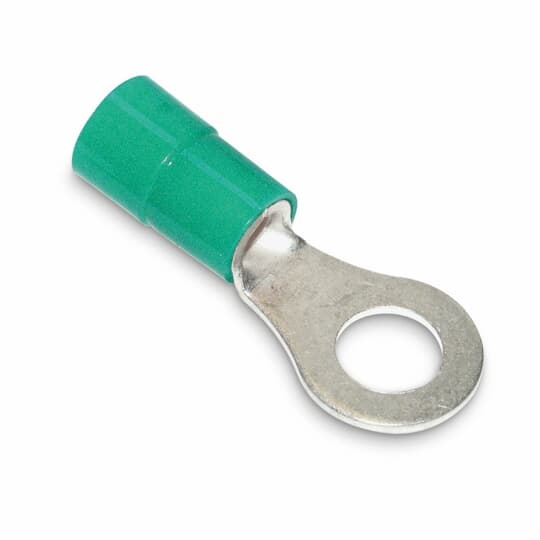

Sta-Kon Ring Terminal, Heavy Duty Insulated, Series: RB Series, 16 to 14 AWG Conductor, 3/8 in Stud, 1.26 in Length, Brazed/Overlapped Seam Barrel, Ring Tongue, 0.63 in W x 0.03 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.38 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Green
Additional Description: TB -RBC14-38 INS NYL RING TERM, 16-14 HD, 3/8, G GREEN
Catalog Description: Nylon Insulated Heavy-Duty Ring Terminal, Length 1.26 Inches, Width .63 Inches, Maximum Insulation .210, Bolt Hole 3/8 Inch, Wire Range #16-#14 Heavy Duty, Color Green, Copper, Tin Plated
