Brand: Thomas & Betts
RBC717M

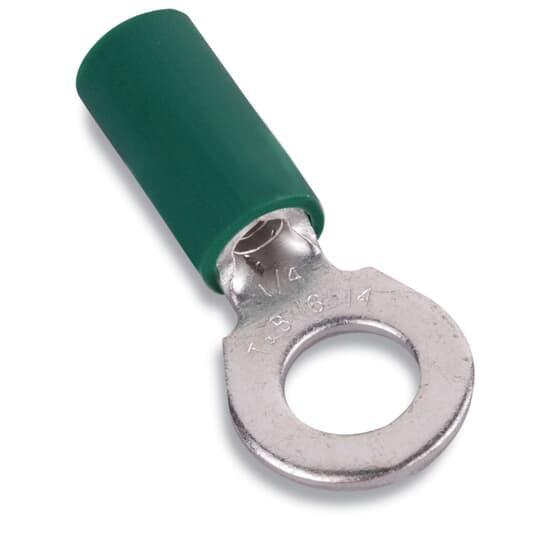

Thomas & Betts RBC717M Sta-Kon Ring Terminal
Part Number # RBC717M
SKU # 334657
$1172.30 / 500Each
Thomas & Betts RBC717M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RBC717M |
| SKU #: | 334657 |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Finish: | Tin Plated |
| Series: | RB Series |
| Specifications: | 0.21 in Dia Max Insulation, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.51 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Heavy Duty Insulated |
| Country of origin: | US |
| Length: | 1.19, 1.19 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210187938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1172.30 / 500Each
Quantity:
- Sta-Kon Ring Terminal, Heavy Duty Insulated, Series: RB Series, 16 to 14 AWG Conductor, 1/4 in Stud, 1.19 in Length, Ring Tongue, 0.51 in W x 0.03 in THK Tongue, 600 V AC, 0.21 in Dia Max Insulation, Vinyl Insulation, 105 deg C, Copper, Tin Plated, Blue
RBC717M Application
For WT2000, ERG4001 and WT2130A toolsRBC717M Item Features
- Terminal features funneled barrel entry that accepts heavily insulated wire and brazed or overlapping seams for proper electrical flow
- Deep internal serrations that prevents pullout from vibration and mechanical strain
- Made of copper and has electro-tin plating for corrosion resistance
- On mylar tape
- 500 Pieces/Pack
RBC717M Standards
UL Listed|UL 94-V-0 Flammability Rating|CSA CertifiedSKU #334657Part Number #RBC717MUNSPSC39121432UPC00786210187938
