RBD14-183

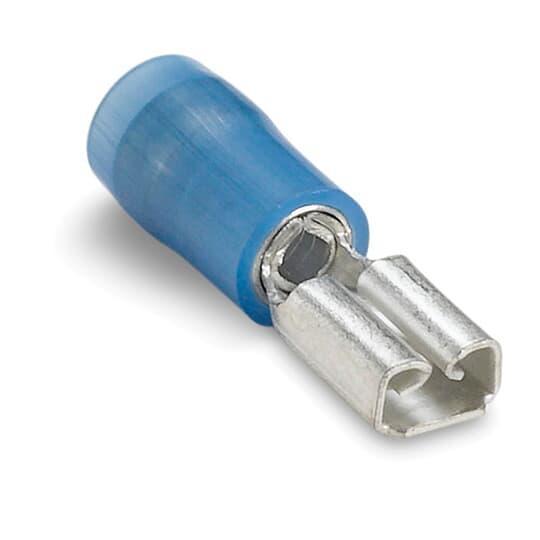

Thomas & Betts RBD14-183 Sta-Kon Female Disconnect
Part Number # RBD14-183
SKU # 39833
$157.54 / 100Each
Thomas & Betts RBD14-183 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RBD14-183 |
| SKU #: | 39833 |
| Barrel Type: | Internal Serration Long |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 0.83 in L x 0.23 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 187 |
| Specifications: | 0.163 in Dia Maximum Insulation, 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Color: | Blue |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210816524 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$157.54 / 100Each
Quantity:
- Sta-Kon Female Disconnect, Series: 187, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 V AC, 0.163 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 0.83 in L x 0.23 in W, Insulated: Insulated
RBD14-183 Item Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
RBD14-183 Standards
UL E66716 / UL E66716SKU #39833Part Number #RBD14-183UNSPSC39121447UPC00786210816524
