RBD1823M

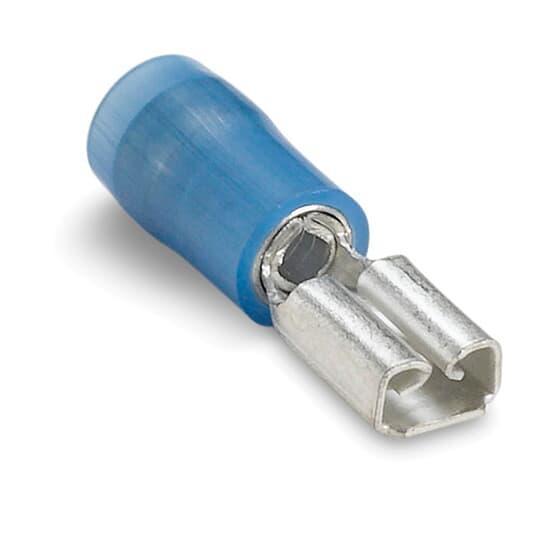

Thomas & Betts RBD1823M Sta-Kon Female Disconnect
Part Number # RBD1823M
SKU # 39835
Thomas & Betts RBD1823M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RBD1823M |
| SKU #: | 39835 |
| Barrel Type: | Funnel Entry/Internal Serration |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 0.83 in L x 0.23 in W, 0.83 in OAL |
| Finish: | Tin Plated |
| Insulated: | Insulated, Self-Insulated |
| Series: | 187 Series |
| Specifications: | 0.23 in W Tongue, 0.23 in W Tongue, Nylon Insulation |
| Color: | Blue |
| Country of origin: | US |
| Material: | Copper, Copper/Nylon/Polyamide |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210850429 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RBD1823M Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RBD1823M
Spec-Kon Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Funnel Entry/Internal Serration Barrel, 300 kV, Specifications: 0.23 in W Tongue, Nylon Insulation, Copper, Blue, Tin Plated, 0.83 in L x 0.23 in W, Insulated
Additional Description: TB -RBD1823M (N) INS NY FEM 187 DISC 16-14 LEN MYLAR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .163, Tab Size .187x.020, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
RBD1823M Item Features
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Complete line of installing tools, engineered to match tool with terminal
- Funnel entry insulators enable easier inserting of wire into barrel
- Color coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
- Unique construction of the female disconnect offers long term dependability
RBD1823M Standards
CSA Certified|UL ListedSKU #39835Part Number #RBD1823MUNSPSC39121447UPC00786210850429
