Part Number # RBS14-250AX
SKU # 2180784
Image provided may only be a representation of
final product and may include optional equipment
RBS14-250AX

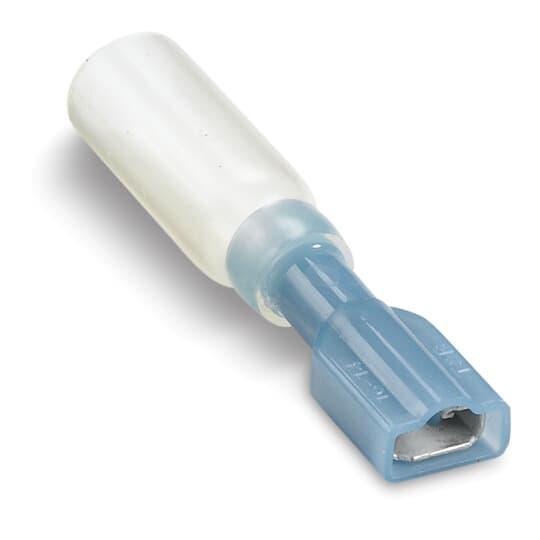

Thomas & Betts RBS14-250AX Sta-Kon Female Disconnect
Part Number # RBS14-250AX
SKU # 2180784
Thomas & Betts RBS14-250AX Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RBS14-250AX |
| SKU #: | 2180784 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 1.77 in L |
| Finish: | Electroplated Tin |
| Insulated: | Fully Insulated |
| Series: | 250 |
| Specifications: | 0.2 in Dia Maximum Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210073378 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RBS14-250AX Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: RBS14-250AX
Sta-Kon Female Disconnect, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.2 in Dia Maximum Insulation, 105 deg C, Brass, Blue, Electroplated Tin, 1.77 in L, Insulated: Fully Insulated
Additional Description: TB -RBS14-250AX HEAT-SHR FEM-250 DISC, 16-14 LEN 1. 1.77, T
Catalog Description: Heat Shrinkable Fully Insulated Female Disconnect Terminal, Length 1.77 Inches, Maximum Insulation .200, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
RBS14-250AX Item Features
- Heat shrinkable polyolefin
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT1255, ERG4255 tools
- Color-coded for easy installation
RBS14-250AX Standards
CSA Certified|UL ListedSKU #2180784Part Number #RBS14-250AXUNSPSC39121447UPC00786210073378
