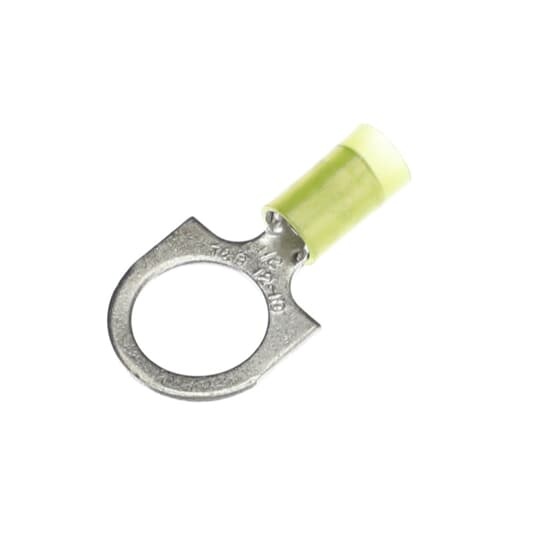

Thomas & Betts RC10-12 Sta-Kon Ring Terminal
Image Disclaimers Message
Thomas & Betts RC10-12 Sta-Kon Ring Terminal
Thomas & Betts RC10-12 Sta-Kon Ring Terminal
Part #:RC10-12
SKU #: 39850
Key Features
Part #:RC10-12
SKU #: 39850
Brand: Thomas & Betts
Barrel Type: Insulation Grip Sleeve
Conductor Size: 12 to 10, 12 to 10 AWG
Finish: TiN Coated
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.52 in Clearance, Nylon Insulation
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 50 pieces/pack
Thomas & Betts RC10-12 Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 1/2 in Stud, 1.37 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.72 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.52 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
Additional Description: TB -RC10-12 INS NYL RNG TERM 12-10 BOLT 1/2 YEL YELLOW
Catalog Description: Nylon Insulated Ring Terminal, Length 1.37 Inches, Width .72 Inches, Maximum Insulation .210, Bolt Hole 1/2 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
