Part Number # RC10-250A
SKU # 39855
Image Disclaimers Message
RC10-250A

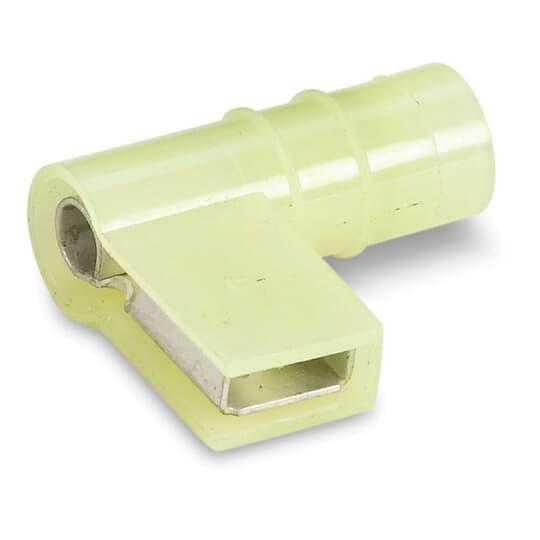

Thomas & Betts RC10-250A Sta-Kon Female Disconnect
Part Number # RC10-250A
SKU # 39855
$96.65 / 50Each
Thomas & Betts RC10-250A Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC10-250A |
| SKU #: | 39855 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Dimensions: | 0.8 in L x 0.88 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 250 |
| Specifications: | 0.245 in Dia Maximum Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Type: | 90 deg Flag Open Top |
| Color: | Yellow |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210894478 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.65 / 50Each
Quantity:
- Sta-Kon Female Disconnect, 90 deg Flag Open Top, Series: 250, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 0.245 in Dia Maximum Insulation, 105 deg C, Brass, Yellow, Electroplated Tin, 0.8 in L x 0.88 in W, Insulated: Insulated
RC10-250A Item Features
- Nylon insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
RC10-250A Standards
UL File No. E66716|CSA Certified|UL 94 V-0 Flammability RatingSKU #39855Part Number #RC10-250AUNSPSC39121447UPC00786210894478
