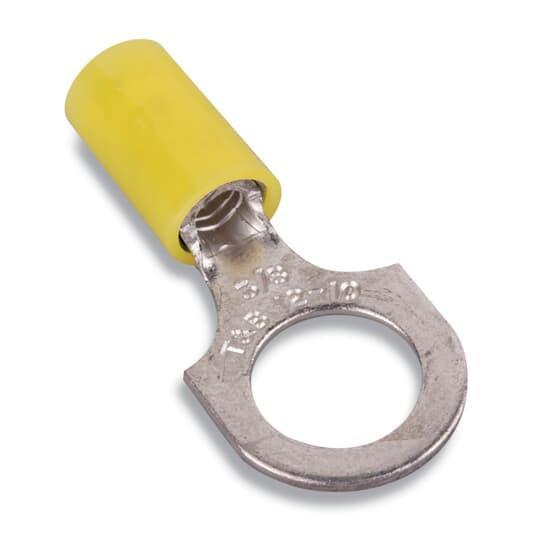

Thomas & Betts RC10-6 Sta-Kon Ring Terminal
Thomas & Betts RC10-6 Sta-Kon Ring Terminal
Part #:RC10-6
SKU #: 39862
Key Features
Part #:RC10-6
SKU #: 39862
Brand: Thomas & Betts
Barrel Type: Insulation Grip Sleeve
Conductor Size: 12 to 10, 12 to 10 AWG
Finish: TiN Coated
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 50 pieces/pack
Thomas & Betts RC10-6 Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #6 Stud, 1 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
Additional Description: TB -RC10-6 INSNYLON RING TERM 12-10 No6 YELLOW YELLOW
Catalog Description: Nylon Insulated Ring Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
