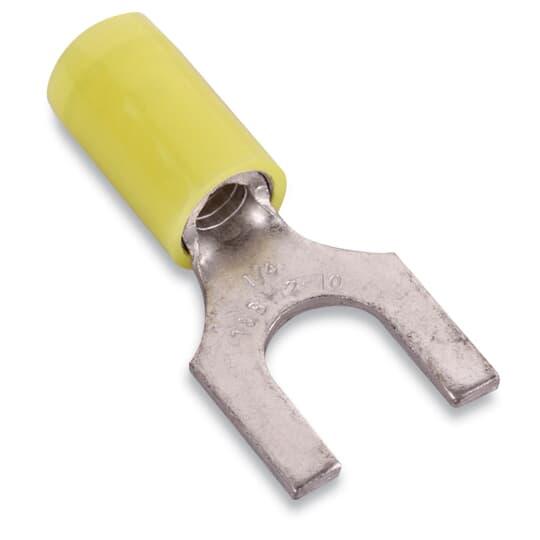

Thomas & Betts RC1113 Sta-Kon Fork Terminal
Image Disclaimers Message
Thomas & Betts RC1113 Sta-Kon Fork Terminal
Thomas & Betts RC1113 Sta-Kon Fork Terminal
Part #:RC1113
SKU #: 2178582
Key Features
Part #:RC1113
SKU #: 2178582
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 12 to 10, 12 to 10 AWG
Finish: Electroplated Tin
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation
- Nylon insulated with inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep
- Brazed seam barrel is serrated for high pull-out value
- Nylon jacket is Color coded
- WT112M, WT145A, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts RC1113 Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Additional Description: TB -RC1113 INS NYL FORK TERM 12-10 BH No6 YELL YELLOW
Catalog Description: Nylon Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #6, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
