Part Number # RC1147-250
SKU # 39869
Image Disclaimers Message
RC1147-250

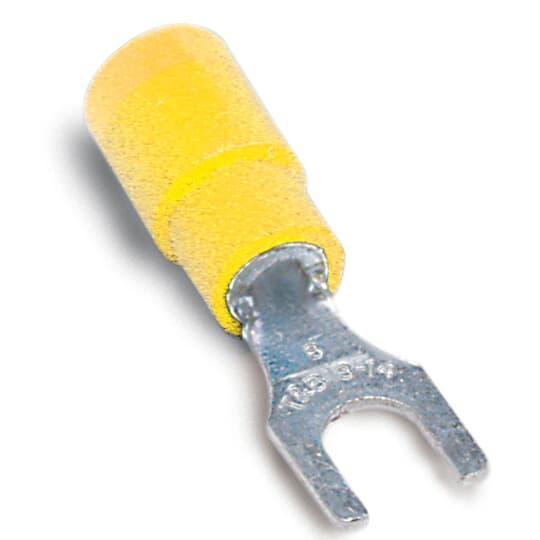

Thomas & Betts RC1147-250 Sta-Kon Fork Terminal
Part Number # RC1147-250
SKU # 39869
Thomas & Betts RC1147-250 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC1147-250 |
| SKU #: | 39869 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | TiN Coated |
| Specifications: | 1/4 in Maximum Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.38 in W |
| Country of origin: | US |
| Length: | 1.11, 1.11 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210927190 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RC1147-250 Sta-Kon Fork Terminal
Brand: Thomas & Betts
Part Number: RC1147-250
Sta-Kon Fork Terminal, 12 to 10 AWG Conductor, #8 Stud, 1.11 in Length, Brazed Seam Barrel, 0.38 in W Tongue, 600 V, 1/4 in Maximum Insulation, 105 deg C, Copper, TiN Coated
Additional Description: TB -RC1147-250 (N) EXP INS VINYL FORK TERM, 12-10, No8 YELLOW NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Expanded Vinyl Insulated Fork Terminal, Length 1.11 Inches, Width .38 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
RC1147-250 Application
For ERG4001 comfort Crimp compression tool and WT145C, WT2000, WT112M plier type crimping toolRC1147-250 Item Features
- Fork terminals allow easy installation since the mounting screw does not have to be completely removed
- These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation
- Yellow vinyl insulated
RC1147-250 Standards
BAA Compliant|CSA Certified|UL E9809SKU #39869Part Number #RC1147-250UNSPSC39121432UPC00786210927190
