Part Number # RC2217-250M
SKU # 308167
Image provided may only be a representation of
final product and may include optional equipment
RC2217-250M

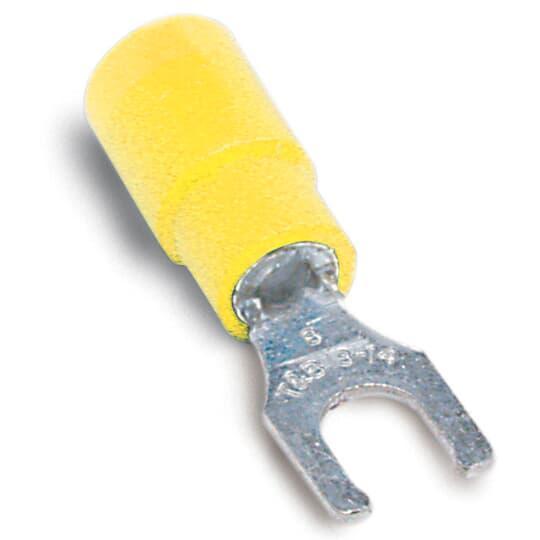

Thomas & Betts RC2217-250M Sta-Kon Fork Terminal
Part Number # RC2217-250M
SKU # 308167
Thomas & Betts RC2217-250M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC2217-250M |
| SKU #: | 308167 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | Electro-Plated Tin |
| Series: | RC Series |
| Specifications: | 1/4 in Dia Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.37 in W x 0.04 in THK |
| Tongue Type: | Locking Fork |
| Type: | Expanded |
| Country of origin: | US |
| Length: | 1.1, 1.1 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210863153 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts RC2217-250M Sta-Kon Fork Terminal
Brand: Thomas & Betts
Part Number: RC2217-250M
Sta-Kon Fork Terminal, Expanded, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.1 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, 1/4 in Dia Vinyl Insulation, 105 deg C, Copper, Electro-Plated Tin, Yellow
Additional Description: TB -RC2217-250M (N) EXP INS VIN LKG FRK TRM 12-10 MYLAR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Expanded Vinyl Insulated Locking Fork Terminal, Length 1.10 Inches, Width .37 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, On Mylar Tape, 500 Pack
RC2217-250M Item Features
- Brazed seam barrel is serrated for high pull out value
- Insulation is color coded
- On mylar tape
RC2217-250M Standards
BAA Compliant|CSA Certified|UL File No E9809SKU #308167Part Number #RC2217-250MUNSPSC39121432UPC00786210863153
