Brand: Thomas & Betts
RC2227-250M

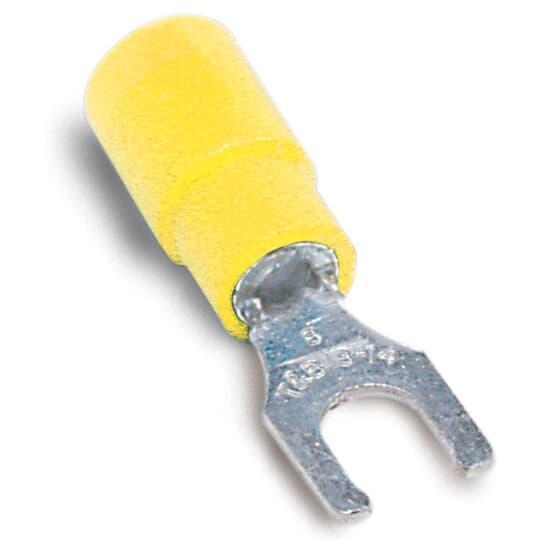

Thomas & Betts RC2227-250M Sta-Kon Fork Terminal
Part Number # RC2227-250M
SKU # 39883
$274.10 / 500Each
Thomas & Betts RC2227-250M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC2227-250M |
| SKU #: | 39883 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | Electroplated Tin |
| Series: | RC Series |
| Specifications: | 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.37 in W x 0.04 in THK |
| Tongue Type: | Locking Fork |
| Type: | Expanded Insulated |
| Color: | Yellow |
| Country of origin: | US |
| Length: | 1.1, 1.1 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210863160 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$274.10 / 500Each
Quantity:
- Sta-Kon Fork Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.1 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
RC2227-250M Item Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
- On mylar tape
RC2227-250M Standards
UL E9809 / UL E9809SKU #39883Part Number #RC2227-250MUNSPSC39121432UPC00786210863160
