Part Number # RC257
SKU # 39890
Image Disclaimers Message
RC257

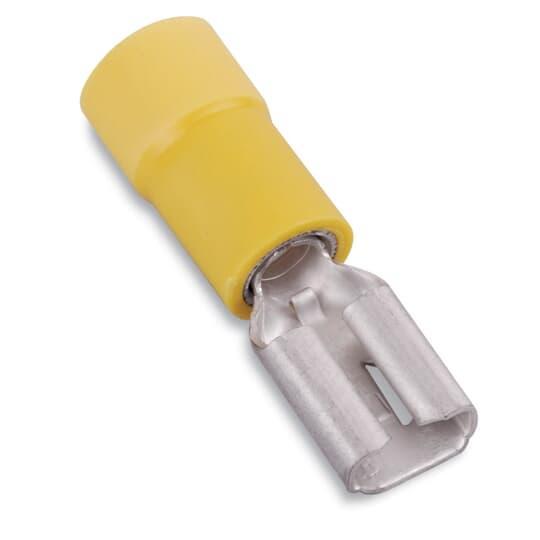

Thomas & Betts RC257 Sta-Kon Female Disconnect
Part Number # RC257
SKU # 39890
$384.50 / 500Each
Typical price:$515.00 / Each
Thomas & Betts RC257 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC257 |
| SKU #: | 39890 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Dimensions: | 1.03 in L x 0.29 in W |
| Finish: | Electroplated Tin |
| Insulated: | Fully Insulated |
| Series: | 250 |
| Specifications: | 1/4 in Dia Maximum Insulation, 0.04 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Color: | Yellow |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210819723 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$384.50 / 500Each
Typical price:$515.00 / Each
Quantity:
- Sta-Kon Female Disconnect, Series: 250, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 V AC, 1/4 in Dia Maximum Insulation, 0.04 in THK Stock, 105 deg C, Brass, Yellow, Electroplated Tin, 1.03 in L x 0.29 in W, Insulated: Fully Insulated
RC257 Item Features
- Vinyl insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
RC257 Standards
UL E66716 / UL E66716SKU #39890Part Number #RC257UNSPSC39121447UPC00786210819723
