Part Number # RC363M
SKU # 2228672
Image Disclaimers Message
RC363M

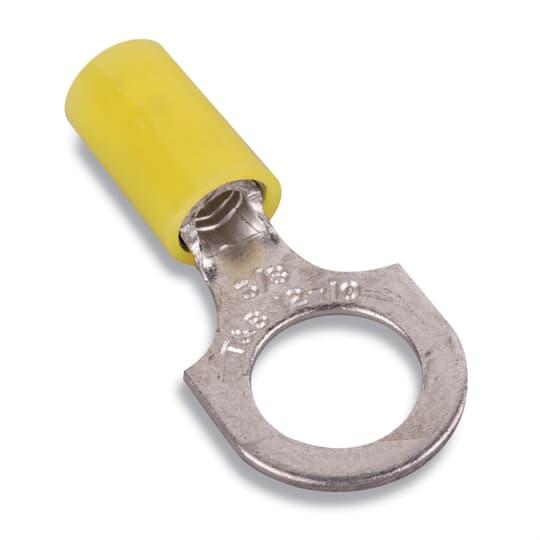

Thomas & Betts RC363M Sta-Kon Ring Terminal
Part Number # RC363M
SKU # 2228672
$338.90 / 500Each
Thomas & Betts RC363M Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC363M |
| SKU #: | 2228672 |
| Barrel Type: | Insulation Grip Sleeve |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | TiN Coated |
| Series: | RC Series |
| Specifications: | 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.37 in W x 0.04 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Color: | Yellow |
| Country of origin: | US |
| Length: | 1, 1 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210862941 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$338.90 / 500Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
RC363M Application
Automotive, Panelboard, Telecommunications and Wiring Harness ApplicationsRC363M Item Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- On mylar tape
- 500 pieces/pack
RC363M Standards
UL Listed|UL 94 V-2 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #2228672Part Number #RC363MUNSPSC39121432UPC00786210862941
