RC864

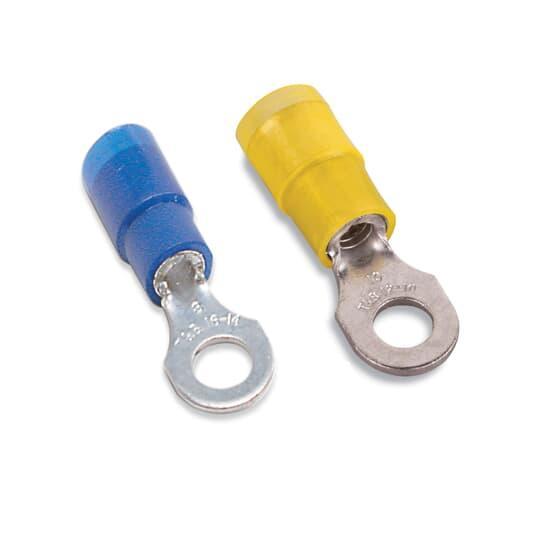

Thomas & Betts RC864 Sta-Kon Ring Terminal
Part Number # RC864
SKU # 39930
$906.40 / 500Each
Thomas & Betts RC864 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RC864 |
| SKU #: | 39930 |
| Barrel Type: | Insulation Grip Sleeve |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | TiN Coated |
| Series: | RC Series |
| Specifications: | 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.37 in W x 0.04 in THK |
| Tongue Type: | Ring |
| Type: | Expanded Insulated |
| Color: | Yellow |
| Country of origin: | US |
| Length: | 1.1, 1.1 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210820255 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$906.40 / 500Each
Quantity:
- Sta-Kon Ring Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.1 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
RC864 Application
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A toolsRC864 Item Features
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, nylon insulated, Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- Expanded entry
- 500 pieces/pack
RC864 Standards
UL E9809 / UL E9809SKU #39930Part Number #RC864UNSPSC39121432UPC00786210820255
