Part Number # RD727
SKU # 39944
Image Disclaimers Message
Brand: Thomas & Betts
RD727

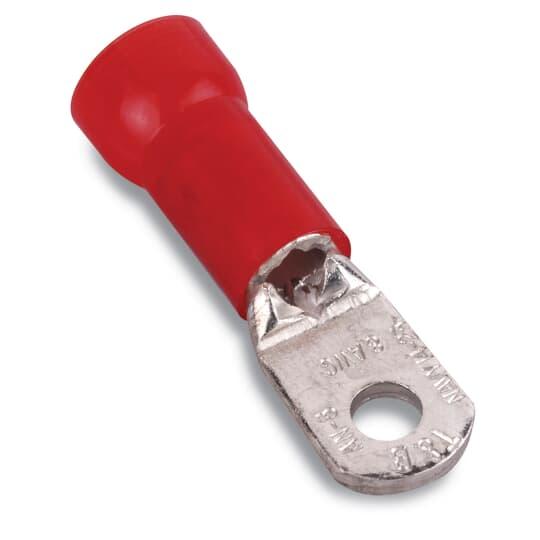

Thomas & Betts RD727 Sta-Kon Ring Terminal
Part Number # RD727
SKU # 39944
$464.14 / 200Each
Thomas & Betts RD727 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RD727 |
| SKU #: | 39944 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 8, 8 AWG |
| Finish: | TiN Coated |
| Series: | RD Series |
| Specifications: | 0.34 in Dia Maximum Insulation, 0.36 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.57 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Color: | Red |
| Country of origin: | MX |
| Length: | 1.63, 1.63 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210820620 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$464.14 / 200Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RD Series, 8 AWG Conductor, 5/16 in Stud, 1.63 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.57 in W x 0.04 in THK Tongue, 600 VAC, 0.34 in Dia Maximum Insulation, 0.36 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Red
RD727 Application
For ERG4007 tool applicationsRD727 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 200 pieces/pack
RD727 Standards
UL Listed|UL 94 V-2 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #39944Part Number #RD727UNSPSC39121432UPC00786210820620
