RD757

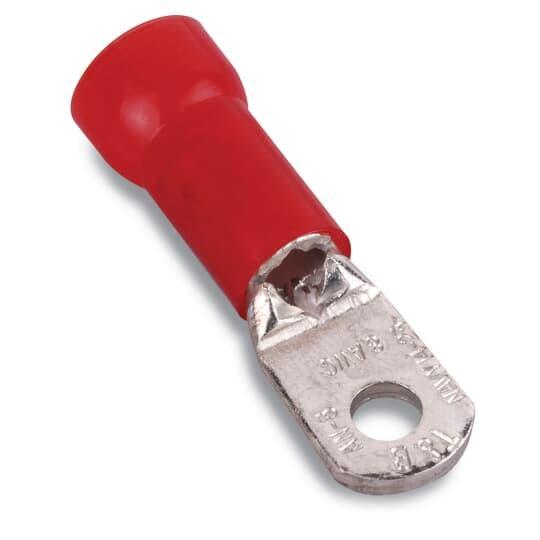

Thomas & Betts RD757 Sta-Kon Ring Terminal
Part Number # RD757
SKU # 39946
$686.32 / 200Each
Thomas & Betts RD757 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RD757 |
| SKU #: | 39946 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 8, 8 AWG |
| Finish: | TiN Coated |
| Series: | RD Series |
| Specifications: | 0.31 in Dia Maximum Insulation, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.82 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Color: | Red |
| Country of origin: | US |
| Length: | 1.79, 1.79 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210820675 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$686.32 / 200Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RD Series, 8 AWG Conductor, 1/2 in Stud, 1.79 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.82 in W x 0.04 in THK Tongue, 600 V AC, 0.31 in Dia Maximum Insulation, Nylon Insulation, 105 deg C, Copper, Tin Coated, Red
RD757 Item Features
- Funneled barrel entry
- Deep internal serrations
- EC001052 solderless copper terminals for copper conductors
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Wire range identification on the tongue of each terminal
- Constructed of electrolytic copper for high conductivity
- Flex class 41/24
RD757 Standards
UL E9809 / UL E9809SKU #39946Part Number #RD757UNSPSC39121432UPC00786210820675
