RDV717

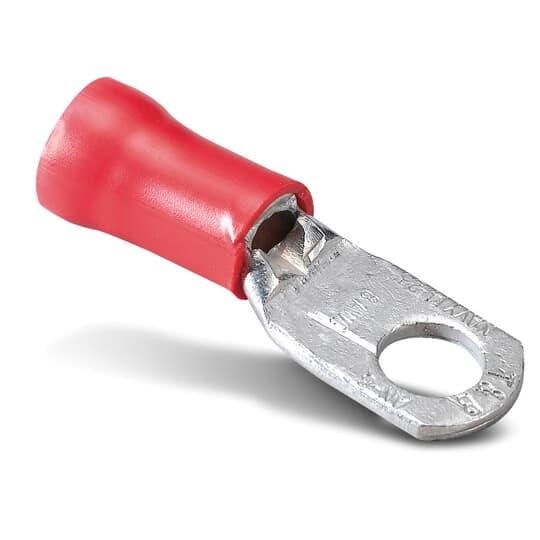

Thomas & Betts RDV717 Sta-Kon Ring Terminal
Part Number # RDV717
SKU # 2185908
$264.86 / 200Each
Thomas & Betts RDV717 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RDV717 |
| SKU #: | 2185908 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 8, 8 AWG |
| Finish: | TiN Coated |
| Series: | RD Series |
| Specifications: | 0.34 in Dia Maximum Insulation, 0.36 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.46 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Color: | Red |
| Country of origin: | US |
| Length: | 1.54, 1.54 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210915562 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$264.86 / 200Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RD Series, 8 AWG Conductor, 1/4 in Stud, 1.54 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.46 in W x 0.04 in THK Tongue, 600 V AC, 0.34 in Dia Maximum Insulation, 0.36 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Red
RDV717 Application
ERG4007, TBM6 and TBM6S Tool ApplicationsRDV717 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 200 pieces/pack
RDV717 Standards
CSA Certified|UL Listed|UL 94 V-0 Flammability Rated|UL File No. E9809SKU #2185908Part Number #RDV717UNSPSC39121432UPC00786210915562
