Brand: Thomas & Betts
RE6-14

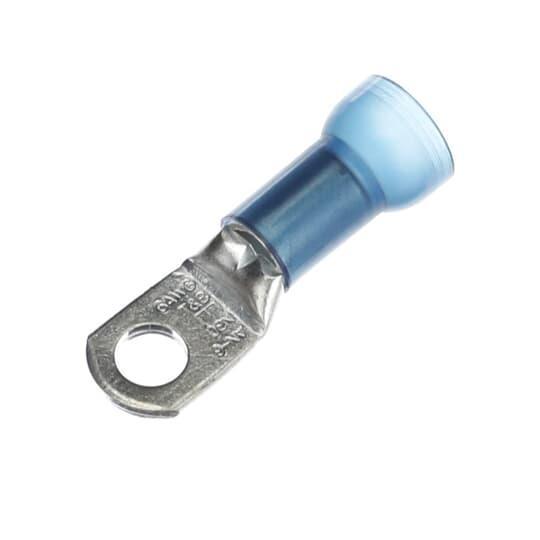

Thomas & Betts RE6-14 Sta-Kon Ring Terminal
Part Number # RE6-14
SKU # 931280
$102.40 / 20Each
Thomas & Betts RE6-14 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RE6-14 |
| SKU #: | 931280 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 6, 6 AWG |
| Finish: | TiN Coated |
| Series: | RE Series |
| Specifications: | 0.42 in Dia Maximum Insulation, 0.28 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.49 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Country of origin: | MX |
| Length: | 1.65, 1.65 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210878638 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$102.40 / 20Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RE Series, 6 AWG Conductor, 1/4 in Stud, 1.65 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.49 in W x 0.04 in THK Tongue, 600 V AC, 0.42 in Dia Maximum Insulation, 0.28 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Blue
RE6-14 Application
For ERG4007 tool applicationsRE6-14 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 20 pieces/pack
RE6-14 Standards
UL Listed|UL 94 V-2 Flammability Rated|CSA Certified|UL File No. E9809SKU #931280Part Number #RE6-14UNSPSC39121432UPC00786210878638
