Part Number # REV717
SKU # 2168733
REV717

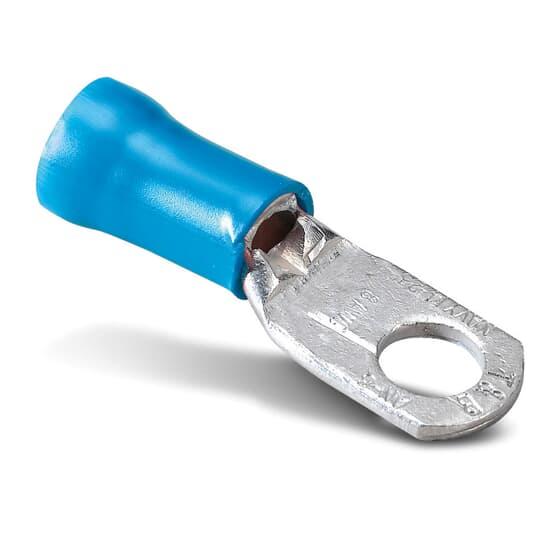

Thomas & Betts REV717 Sta-Kon Ring Terminal
Part Number # REV717
SKU # 2168733
Thomas & Betts REV717 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | REV717 |
| SKU #: | 2168733 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 6, 6 AWG |
| Finish: | TiN Coated |
| Series: | RE Series |
| Specifications: | 0.42 in Dia Maximum Insulation, 0.28 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.49 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Country of origin: | US |
| Length: | 1.65, 1.65 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210958712 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts REV717 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: REV717
Sta-Kon Ring Terminal, Insulated, Series: RE Series, 6 AWG Conductor, 1/4 in Stud, 1.65 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.49 in W x 0.04 in THK Tongue, 600 VAC, 0.42 in Dia Maximum Insulation, 0.28 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Blue
Additional Description: TB -REV717 INS VINYL RING TERM, 6 AWG, 1/4, BL BLUE
Catalog Description: Vinyl Insulated Large Ring Terminal, Length 1.65 Inches, Width .49 Inches, Maximum Insulation .420, Bolt Hole 1/4 Inch, Wire Range 6, Color Blue, Copper, Tin Plated, 200 Pack
REV717 Application
ERG4007, TBM6 and TBM6S Tool ApplicationsREV717 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 200 pieces/pack
REV717 Standards
UL E9809 / UL E9809SKU #2168733Part Number #REV717UNSPSC39121432UPC00786210958712
Image provided may only be a representation of final product and may include optional equipment
