RF10711

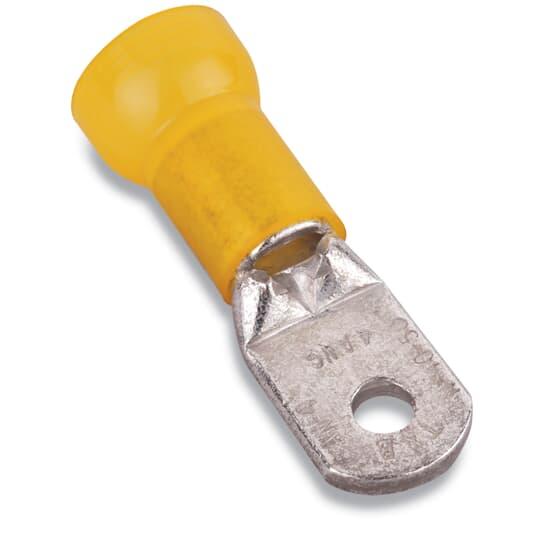

Thomas & Betts RF10711 Sta-Kon Ring Terminal
Part Number # RF10711
SKU # 2271002
$332.75 / 100Each
Thomas & Betts RF10711 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RF10711 |
| SKU #: | 2271002 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 4 AN, 4 AN AWG |
| Finish: | TiN Coated |
| Series: | RF Series |
| Specifications: | 0.38 in Dia Maximum Insulation, Nylon Insulation |
| Temperature Rating (Degrees F): | 150, 150 deg C |
| Tongue Size: | 0.55 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Color: | Yellow |
| Country of origin: | MX |
| Length: | 1.78, 1.78 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210830438 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$332.75 / 100Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RF Series, 4 AN AWG Conductor, 1/4 in Stud, 1.78 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.55 in W x 0.04 in THK Tongue, 600 V AC, 0.38 in Dia Maximum Insulation, Nylon Insulation, 150 deg C, Copper, Tin Coated, Yellow
RF10711 Item Features
- Funneled barrel entry
- Deep internal serrations
- EC001052 solderless copper terminals for copper conductors
- Can be installed with crimping tools having a single indenter or double indenter (recommended for solid wire)
- Wire range identification on the tongue of each terminal
- Constructed of electrolytic copper for high conductivity
- Flex class 105/24
RF10711 Standards
UL Listed|CSA Certified|UL File No. E9809SKU #2271002Part Number #RF10711UNSPSC39121432UPC00786210830438
