Part Number # RF4-516
SKU # 386300
Image Disclaimers Message
RF4-516

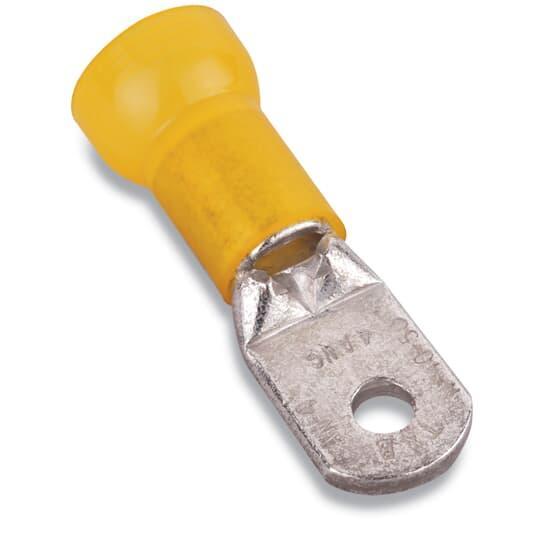

Thomas & Betts RF4-516 Sta-Kon Ring Terminal
Part Number # RF4-516
SKU # 386300
$84.47 / 15Each
Thomas & Betts RF4-516 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RF4-516 |
| SKU #: | 386300 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 4, 4 AWG |
| Finish: | TiN Coated |
| Series: | RF Series |
| Specifications: | 0.51 in Dia Maximum Insulation, 0.35 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.62 in W x 0.04 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Color: | Yellow |
| Country of origin: | MX |
| Length: | 1.84, 1.84 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210872148 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.47 / 15Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RF Series, 4 AWG Conductor, 5/16 in Stud, 1.84 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.62 in W x 0.04 in THK Tongue, 600 V AC, 0.51 in Dia Maximum Insulation, 0.35 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
RF4-516 Application
For TBM6, TBM6S and ERG4007 toolsRF4-516 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 15 pieces/pack
RF4-516 Standards
UL Listed|UL 94 V-2 Flammability Rated|CSA Certified|UL File No. E9809SKU #386300Part Number #RF4-516UNSPSC39121432UPC00786210872148
