Part Number # RH717
SKU # 2305970
Image Disclaimers Message
Brand: Thomas & Betts
RH717

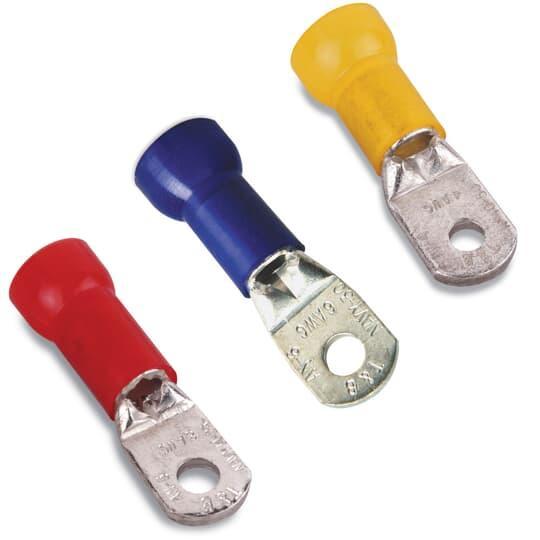

Thomas & Betts RH717 Sta-Kon Ring Terminal
Part Number # RH717
SKU # 2305970
$426.91 / 50Each
Thomas & Betts RH717 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RH717 |
| SKU #: | 2305970 |
| Barrel Type: | Brazed/Overlapped Seam |
| Conductor Size: | 1/0, 1/0 AWG |
| Finish: | TiN Coated |
| Series: | RH Series |
| Specifications: | 0.629 in Dia Maximum Insulation, 0.43 in Clearance, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.77 in W x 0.05 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Country of origin: | MX |
| Length: | 2.14, 2.14 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210821177 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$426.91 / 50Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RH Series, 1/0 AWG Conductor, 1/4 in Stud, 2.14 in Length, Brazed/Overlapped Seam Barrel, Large Ring Tongue, 0.77 in W x 0.05 in THK Tongue, 600 V AC, 0.629 in Dia Maximum Insulation, 0.43 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, White
RH717 Application
For TBM6, TBM6S and ERG4007 toolsRH717 Item Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion-resistance
- 50 pieces/pack
RH717 Standards
UL Listed|UL 94 V-2 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #2305970Part Number #RH717UNSPSC39121432UPC00786210821177
