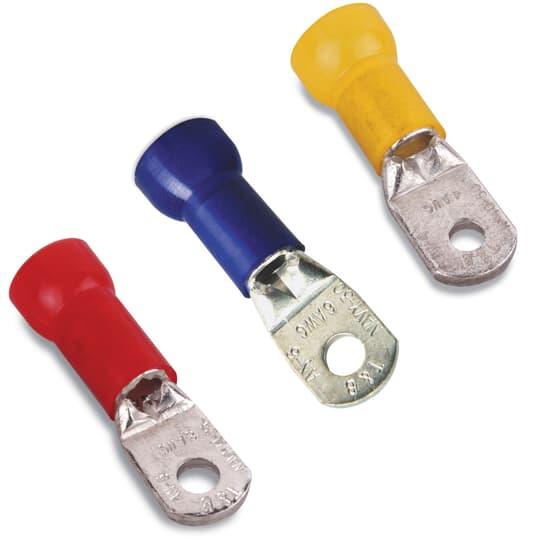

Thomas & Betts RM757 Sta-Kon Ring Terminal
Part Number # RM757
SKU # 2205687
$405.80 / 25Each
Thomas & Betts RM757 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | RM757 |
| SKU #: | 2205687 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 250, 250 kcmil |
| Finish: | TiN Coated, Tin Plated |
| Series: | RM Series |
| Specifications: | 0.868 in Dia Maximum Insulation, Nylon Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 1.13 in W x 0.07 in THK |
| Tongue Type: | Large Ring |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | MX |
| Length: | 3, 3 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210821603 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$405.80 / 25Each
Quantity:
- Sta-Kon, RM757, Ring Terminal, Insulated, Series: RM Series, 250 kcmil Conductor, 1/2 in Stud, 3 in Length, Brazed Seam Barrel, Large Ring Tongue, 1.13 in W x 0.07 in THK Tongue, 600 V AC, Specifications: 0.868 in Dia Maximum Insulation, Nylon Insulation, 105 deg C, Copper, Tin Plated, Blue
RM757 Item Features
- Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel is serrated to obtain high pull-out value
- EC001052 solderless copper terminals for copper conductors
RM757 Standards
UL Listed|CSA Certified|UL File No. E9809SKU #2205687Part Number #RM757UNSPSC39121432UPC00786210821603
