Brand: Thomas & Betts
SH010H075MV

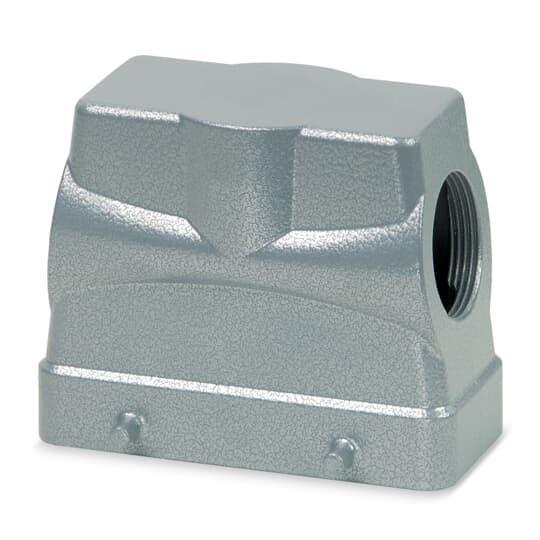

Thomas & Betts SH010H075MV Pos-E-Kon Double Post Hood
Part Number # SH010H075MV
SKU # 2267987
$101.06 / Each
Thomas & Betts SH010H075MV Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | SH010H075MV |
| SKU #: | 2267987 |
| Entry Type: | 1 x 3/4 in NPT |
| Finish: | Epoxy Powder Coated |
| Series: | B Series |
| Specifications: | 16 A, 600 V AC, 16 A, 600 VAC |
| Suitable For Use With: | B Series Connector |
| Temperature Rating (Degrees F): | -40 to 257, -40 to 257 deg F |
| Country of origin: | DE |
| Material: | Die Cast Aluminum |
| Mounting type: | Standard |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121424 |
| UPC: | 00786209987631 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$101.06 / Each
Quantity:
- Pos-E-Kon Double Post Hood, Series: B Series, Side Entry Position, 1 x 3/4 in NPT Entry, Standard Mounting, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated
SH010H075MV Includes
GasketsSH010H075MV Item Features
- 10 contacts with ground
- Side entry double lever locking post hood is made of die cast aluminum alloy that provides resistance to corrosion
- IP65 locked positions internal protection per DIN VDE 0470
- Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant
- B10 double lock system 1 x PG21-3/4 connection
SH010H075MV Standards
CSA Certified|UL File No. E215386|IEC 529|VDE 0470SKU #2267987Part Number #SH010H075MVUNSPSC39121424UPC00786209987631
