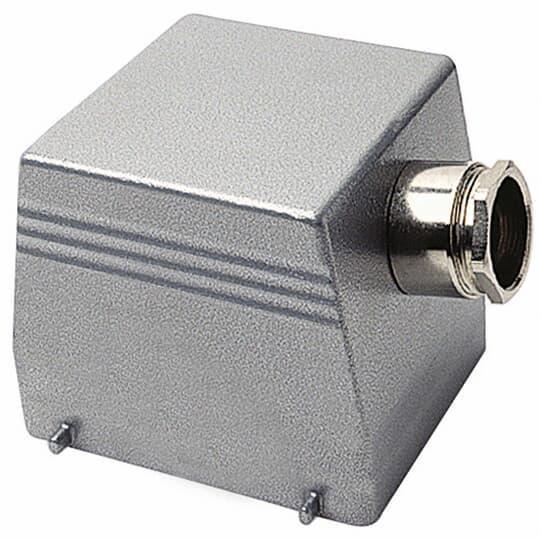

Thomas & Betts SH024MV Pos-E-Kon Double Post Hood
Thomas & Betts SH024MV Pos-E-Kon Double Post Hood
Part #:SH024MV
SKU #: 2252277
$107.33/EA
Key Features
Part #:SH024MV
SKU #: 2252277
Brand: Thomas & Betts
Entry Type: 1 x 3/4 in NPT
Finish: Epoxy Powder Coated
Series: B Series
Specifications: 10 A, 16 A, 35 A, 600 VAC
Suitable For Use With: B Series Connector
$107.33/EA
- 24 contacts with ground
- Side entry double lever locking post hood is made of die cast aluminum alloy that provides resistance to corrosion
- IP65 locked positions internal protection per DIN VDE 0470
- Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant
- B24 double lock system 1 x PG21-3/4 connection
Specifications
Brand: Thomas & Betts
Entry Type: 1 x 3/4 in NPT
Finish: Epoxy Powder Coated
Series: B Series
Specifications: 10 A, 16 A, 35 A, 600 VAC
Suitable For Use With: B Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Country of origin: DE
Material: Die Cast Aluminum
Mounting type: Standard
Manufacturer Name: ABB
UNSPSC: 39121424
UPC: 00786209987075
Thomas & Betts SH024MV Pos-E-Kon Double Post Hood
Pos-E-Kon Double Post Hood, Series: B Series, Side Entry Position, 1 x 3/4 in NPT Entry, Standard Mounting, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 10 A, 16 A, 35 A, 600 VAC, Die Cast Aluminum, Epoxy Powder Coated
Additional Description: TB -SH024MV B24 DBL SIDE ENT HOOD 1XPG21-3/4
Catalog Description: Side entry double post hood , NPT entry-1 Inch x 3/4 Inch
Item FeaturesGaskets
Item Features
Item FeaturesCSA 70013|UL File No. E215386|IEC 529|VDE 0470
