Part Number # SH603AMV
SKU # 2260906
Image Disclaimers Message
Brand: Thomas & Betts
SH603AMV

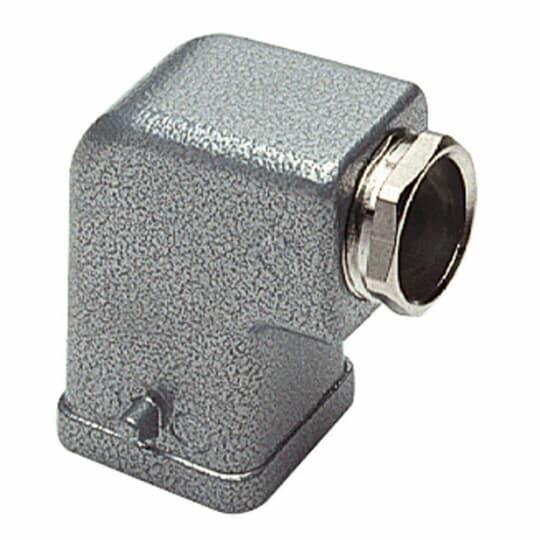

Thomas & Betts SH603AMV Pos-E-Kon Single Post Hood
Part Number # SH603AMV
SKU # 2260906
$33.25 / Each
Thomas & Betts SH603AMV Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | SH603AMV |
| SKU #: | 2260906 |
| Entry Type: | 1 x 3/8 in NPT |
| Finish: | Epoxy Powder Coated |
| Series: | A Series |
| Specifications: | 16 A, 600 V AC, 16 A, 600 VAC |
| Suitable For Use With: | A Series Connector |
| Temperature Rating (Degrees F): | -40 to 257, -40 to 257 deg F |
| Country of origin: | DE |
| Material: | Die Cast Aluminum |
| Mounting type: | Standard |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121424 |
| UPC: | 00786209987105 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$33.25 / Each
Quantity:
- Pos-E-Kon Single Post Hood, Series: A Series, Side Entry Position, 1 x 3/8 in NPT Entry, Standard Mounting, For Use With: A Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated
SH603AMV Includes
GasketsSH603AMV Item Features
- 3 contacts with ground
- Side entry single post hood is made of die cast aluminum alloy that provides resistance to corrosion
- IP44 internal protection DIN VDE 0470
- Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant
- At A3, 4, 10 and 16 locking mechanism
- A3, A4 single lock system 1 x PG11-3/8 connection
SH603AMV Standards
CSA Certified|UL File No. E215386|IEC 529|VDE 0470SKU #2260906Part Number #SH603AMVUNSPSC39121424UPC00786209987105
