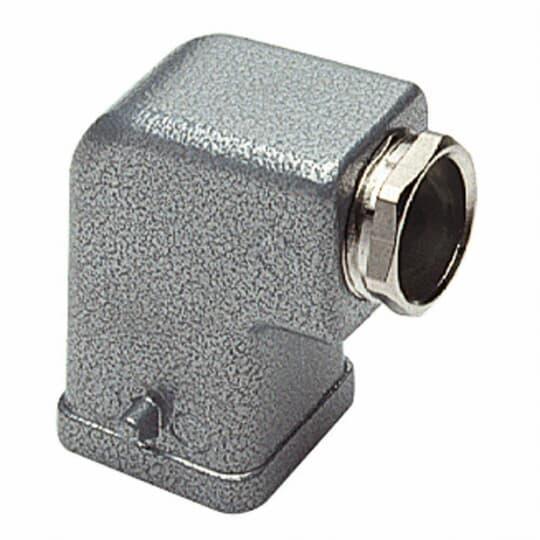

Thomas & Betts SH716AMV Pos-E-Kon Single Post Hood
Thomas & Betts SH716AMV Pos-E-Kon Single Post Hood
Part #:SH716AMV
SKU #: 2239768
$113.61/EA
Key Features
Part #:SH716AMV
SKU #: 2239768
Brand: Thomas & Betts
Entry Type: 1 x 3/4 in NPT
Finish: Epoxy Powder Coated
Series: A Series
Specifications: 16 A, 600 VAC
Suitable For Use With: A Series Connector
$113.61/EA
- 16 contacts with ground
- Side entry single post hood is made of die cast aluminum alloy that provides resistance to corrosion
- IP65 internal protection DIN VDE 0470
- Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant
- At A3, 4, 10 and 16 locking mechanism
- A16 single lock system 1 x PG21-3/4 connection
Specifications
Brand: Thomas & Betts
Entry Type: 1 x 3/4 in NPT
Finish: Epoxy Powder Coated
Series: A Series
Specifications: 16 A, 600 VAC
Suitable For Use With: A Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Country of origin: DE
Material: Die Cast Aluminum
Mounting type: Standard
Manufacturer Name: ABB
UNSPSC: 39121424
UPC: 00786209987006
Thomas & Betts SH716AMV Pos-E-Kon Single Post Hood
Pos-E-Kon Single Post Hood, Series: A Series, Side Entry Position, 1 x 3/4 in NPT Entry, Standard Mounting, For Use With: A Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Die Cast Aluminum, Epoxy Powder Coated
Additional Description: TB -SH716AMV A16 SIDE ENT 1-POST HOOD 1XPG21-3/4
Catalog Description: Side entry single post hood, NPT entry-1 Inch x 3/4 Inch
Item FeaturesGaskets
Item Features
Item FeaturesCSA Certified|UL File No. E215386|IEC 529|VDE 0470
