Brand: Thomas & Betts

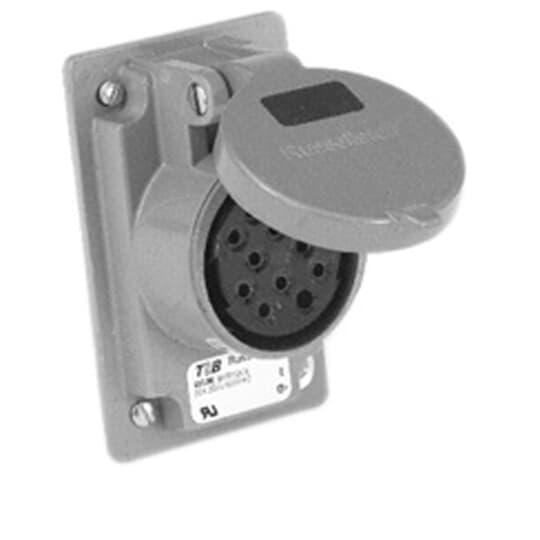

Thomas & Betts SKWR12XG Russellstoll Pin And Sleeve Receptacle
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts SKWR12XG Russellstoll Pin And Sleeve Receptacle
Brand: Thomas & Betts
Thomas & Betts SKWR12XG Russellstoll Pin And Sleeve Receptacle
Part #:SKWR12XG
SKU #: 2416927
$2235.09/EA
Key Features
Part #:SKWR12XG
SKU #: 2416927
Brand: Thomas & Betts
Amperage Rating: 20 A
Frequency Rating: 60 Hz
NEMA Rating: NEMA 4
Number of Poles: 11
Number of Wires: 12
$2235.09/EA
- Automotive/industrial interlock systems were designed for the needs of the manufacturing industry
- Used where safety requirements mandate a mechanically interlocked system for connection and removal of plugs under full load
- Watertight and oil tight, generous wiring space
- Ground contacts are make first, break last
- Furnished with neoprene gasket and stainless steel 6 to 32 mounting screws
- Receptacle housing made of cast aluminum, corrosion resistant, copper free alloy
- Russellstoll control circuit connector
Specifications
Brand: Thomas & Betts
Amperage Rating: 20 A
Frequency Rating: 60 Hz
NEMA Rating: NEMA 4
Number of Poles: 11
Number of Wires: 12
Type: Type SKW Female Watertight
Voltage Rating: 600 VAC/250 VDC
Country of origin: MX
Material: Cast Aluminum
Manufacturer Name: ABB
UNSPSC: 39121404
UPC: 00708917167877
Thomas & Betts SKWR12XG Russellstoll Pin And Sleeve Receptacle
Russellstoll® Pin and Sleeve Receptacle, Type SKW Female Watertight, 600 VAC/250 VDC, 20 A, 60 Hz Frequency, 11 Pole, 12 Wires, NEMA 4, Cast Aluminum
Additional Description: TB -SKWR12XG RECPT WT 12W 11
Catalog Description: Watertight Receptacle, 11 Pole 12 Wire
Item FeaturesFor outdoor NEMA 4, rough service, critical environment machinery, HVACR systems, servo control, other automatic/controlled functions requiring rugged, shock-resistant devices capable of safely breaking rated loads
Item Features
