Part Number # SP10DL
SKU # 2239270
Image Disclaimers Message
SP10DL

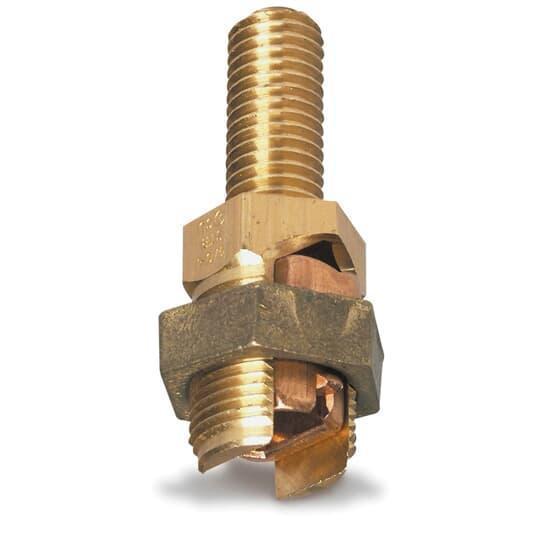

Thomas & Betts SP10DL Blackburn Service Post Connector
Part Number # SP10DL
SKU # 2239270
Thomas & Betts SP10DL Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | SP10DL |
| SKU #: | 2239270 |
| Conductor Size: | 3/0 AWG to 500 kcmil |
| Number of Conductors: | 2 |
| Specifications: | 0.464 to 0.84 in Dia |
| Suitable For Use With: | Steel Structure, Fence Post or Transformer and Bus Bar |
| Type: | Type SP Long Stud Mechanical Grounding |
| Connection type: | Mechanical |
| Country of origin: | MX |
| Material: | Bronze Alloy/Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121613 |
| UPC: | 00783786805396 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts SP10DL Blackburn Service Post Connector
Brand: Thomas & Betts
Part Number: SP10DL
Blackburn E-Z Ground Service Post Connector, Type SP Long Stud Mechanical Grounding, 2 Conductors, 3/0 AWG to 500 kcmil Conductor, 3/4-10 x 1-3/4 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.464 to 0.84 in Dia, Bronze Alloy/Copper
Additional Description: TB -SP10DL (N) SERVICE POST/DOUBLE 500-3/0 STR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Long Stud Double Service Post Connectors for Conductors 500 - 3/0 Stranded, Stud Size 3/4 - 10 x 1 3/4
SP10DL Application
For copper to copper connections, grounding of steel structures or transformers using one or two cables and tapping one or two cables from bus barSP10DL Item Features
- Hex design bolts are machined from high conductivity bronze alloy
- Nuts and pressure bars are cold-formed from high strength copper or copper alloy
- Pressure bars are copper through 4/0 AWG, copper alloy is used for 350 kcmil size and above
SP10DL Standards
CSA 6591|UL File No. E9809SKU #2239270Part Number #SP10DLUNSPSC39121613UPC00783786805396
