SP1SS
Thomas & Betts SP1SS
Part Number # SP1SS
SKU # 2459222
Thomas & Betts SP1SS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | SP1SS |
| SKU #: | 2459222 |
| Conductor Size: | 10 to 7 AWG, 10 to 6 AWG |
| Specifications: | 0.17 to 0.102 in Dia |
| Type: | Type DS Mechanical Grounding Short Stud |
| UNSPSC: | 39121613 |
| UPC: | 00783786121496 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts SP1SS
Brand: Thomas & Betts
Part Number: SP1SS
Blackburn E-Z Ground Service Post Connector, Type DS Mechanical Grounding Short Stud, 1 Conductors, 10 to 7 AWG, 10 to 6 AWG Conductor, 1/4-20 x 1/2 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.17 to 0.102 in Dia, Bronze Alloy/Copper
Additional Description: TB -SP1SS (N) POST CONNETCOR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Short Stud Single Service Post Connectors for Conductors 7 - 10 Stranded, 6 - 10 Solid, Stud Size 1/4 - 20 x 1/2
SP1SS Application
For copper to copper connections, grounding of steel structures or transformers using one or two cables and tapping one or two cables from bus barSP1SS Item Features
- Hex design bolts are machined from high conductivity bronze alloy
- Nuts and pressure bars are cold-formed from high strength copper or copper alloy
- Pressure bars are copper through 4/0 AWG, copper alloy is used for 350 kcmil size and above
SP1SS Standards
CSA 6591|UL File No. E9809SKU #2459222Part Number #SP1SSUNSPSC39121613UPC00783786121496

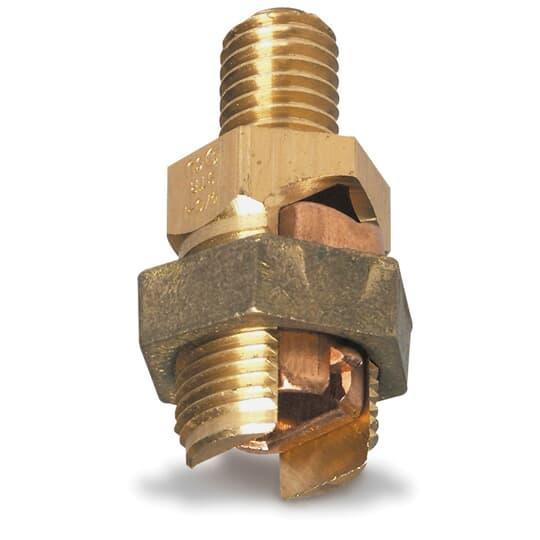

Image provided may only be a representation of final product and may include optional equipment
