Part Number # SP2SL
SKU # 2226811

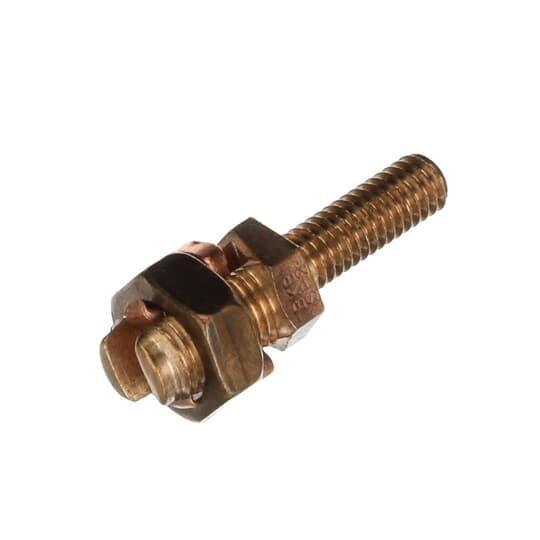

Image provided may only be a representation of
final product and may include optional equipment
SP2SL
Thomas & Betts SP2SL Blackburn Service Post Connector
Part Number # SP2SL
SKU # 2226811
Thomas & Betts SP2SL Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | SP2SL |
| SKU #: | 2226811 |
| Conductor Size: | 10 to 5 AWG, 10 to 4 AWG |
| Number of Conductors: | 1 |
| Specifications: | 0.102 to 0.217 in Dia |
| Suitable For Use With: | Steel Structure, Fence Post or Transformer and Bus Bar |
| Type: | Type SP Long Stud Mechanical Grounding |
| Connection type: | Mechanical |
| Country of origin: | MX |
| Material: | Bronze Alloy/Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121613 |
| UPC: | 00783786805051 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts SP2SL Blackburn Service Post Connector
Brand: Thomas & Betts
Part Number: SP2SL
Blackburn E-Z Ground Service Post Connector, Type SP Long Stud Mechanical Grounding, 1 Conductors, 10 to 5 AWG, 10 to 4 AWG Conductor, 5/16-18 x 1 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.102 to 0.217 in Dia, Bronze Alloy/Copper
Additional Description: TB -SP2SL (N) SRVC POST/SINGLE 5-10 STR 4-10 SOL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Long Stud Single Service Post Connectors for Conductors 5 - 10 Stranded, 4 - 10 Solid, Stud Size 5/16 - 18 x 1
SP2SL Application
For copper to copper connections, grounding of steel structures or transformers using one or two cables and tapping one or two cables from bus barSP2SL Item Features
- Hex design bolts are machined from high conductivity bronze alloy
- Nuts and pressure bars are cold-formed from high strength copper or copper alloy
- Pressure bars are copper through 4/0 AWG, copper alloy is used for 350 kcmil size and above
SP2SL Standards
CSA 6591|UL File No. E9809SKU #2226811Part Number #SP2SLUNSPSC39121613UPC00783786805051
