SP4DS

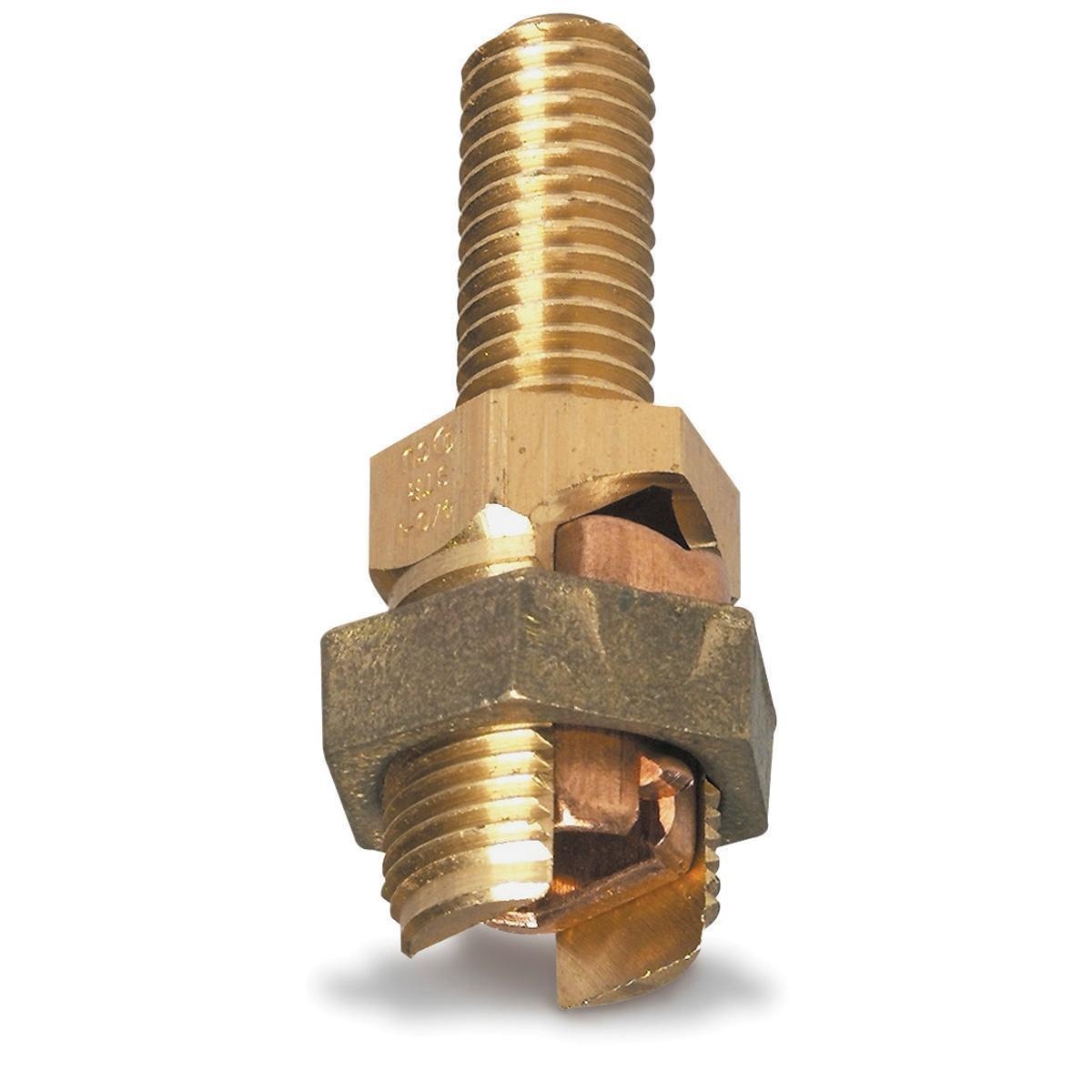

Thomas & Betts SP4DS Blackburn Service Post Connector
Part Number # SP4DS
SKU # 2370345
Thomas & Betts SP4DS Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | SP4DS |
| SKU #: | 2370345 |
| Conductor Size: | 8 to 1 AWG, 8 to 2 AWG |
| Number of Conductors: | 2 |
| Specifications: | 0.128 to 0.332 in Dia |
| Suitable For Use With: | Steel Structure, Fence Post or Transformer and Bus Bar |
| Type: | Type DS Short Stud, Type DS Short Stud Non-Insulated Mechanical |
| Connection type: | Mechanical |
| Country of origin: | MX |
| Material: | Bronze Alloy/Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121613 |
| UPC: | 00783786121564 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts SP4DS Blackburn Service Post Connector
Brand: Thomas & Betts
Part Number: SP4DS
Blackburn E-Z Ground Service Post Connector, Type DS Short Stud Non-Insulated Mechanical, 2 Conductors, 8 to 1 AWG, 8 to 2 AWG Conductor, 3/8-16 x 5/8 in Stud, Mechanical, For Use With: Steel Structure, Fence Post or Transformer and Bus Bar, 0.128 to 0.332 in Dia, Bronze Alloy/Copper
Additional Description: TB -SP4DS SERVICE POST/SGL 1-8 STR 2-8 SOL
Catalog Description: Short Stud Double Service Post Connectors for Conductors 1 - 8 Stranded, 2 - 8 Solid, Stud Size 3/8 - 16 x 5/8
SP4DS Application
For grounding and tappingSP4DS Item Features
- Hex design bolts are machined from high conductivity bronze alloy
- Nuts and pressure bars are cold-formed from high strength copper or copper alloy
- Pressure bars are copper through 4/0 size, copper alloy is used for 350 kcmil size and above
SP4DS Standards
CSA Certified|UL File No. E9809SKU #2370345Part Number #SP4DSUNSPSC39121613UPC00783786121564
