Brand: Thomas & Betts

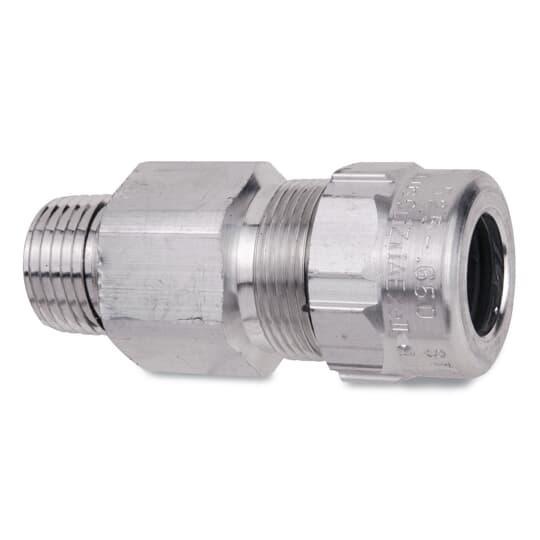

Thomas & Betts ST050-462 Fittings Teck Cable Fitting
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts ST050-462 Fittings Teck Cable Fitting
Brand: Thomas & Betts
Thomas & Betts ST050-462 Fittings Teck Cable Fitting
Part #:ST050-462
SKU #: 2254577
$44.58/EA
Key Features
Part #:ST050-462
SKU #: 2254577
Brand: Thomas & Betts
Cable Openings: 0.525 to 0.65, 0.525 to 0.65 in
Dimensions: 1.224 in Dia
Series: Star Teck®
Temperature Rating (Degrees F): -40 to 194, -40 to 194 deg F
Trade Size: 1/2, 1/2 in
$44.58/EA
- Provides a grip thats high up on the cable-not on the first convolution-so strip length and cutting of cable are not critical
- Dependable service stainless steel retaining ring, withstands corrosive environments, non-magnetic
- Provides 360 deg long term dependable grounding, it makes immediate contact with the cable
- Watertight-tapered neoprene bushing, cone-shaped to provide a secure, tight fit while eliminating cupping or water in vertical installations
- Easy to install in tight spaces low profile gland nut fits tight spaces
- Has grooves for screwdriver installation and flats for a wrench, durable and reusable with funnel entry for easy cable insertion
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Overlapping sizes minimize possibility of mismatched cables and fittings in the field
- 0.415 to 0.57 in cable range over armor
- 1-1/4 in L strip
- The original STAR TECK fitting for teck and ACWU cable set the standard for ease of installation, quality engineering and safe, reliable terminations in challenging industrial environments.
- A natural extension of the 10464 Series, the first STAR TECK cable fitting incorporated input from end-users in Canadian industry and was the first teck fitting to use a pop-on design requiring no disassembly
- Other unique features included a splined gland and gripping features
- https://youtu.be/fyECcFxJJnk
Specifications
Brand: Thomas & Betts
Cable Openings: 0.525 to 0.65, 0.525 to 0.65 in
Dimensions: 1.224 in Dia
Series: Star Teck®
Temperature Rating (Degrees F): -40 to 194, -40 to 194 deg F
Trade Size: 1/2, 1/2 in
Cable type: ACWU/MC, ACWU/MC/TECK
Color: Silver
Connection type: NPT
Country of origin: CA
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121311
UPC: 00786210712826
Thomas & Betts ST050-462 Fittings Teck Cable Fitting
T&B Fittings Star Teck Teck Cable Fitting, 1/2 in, Cable Openings: 0.525 to 0.65 in, ACWU/MC Cable, NPT, Aluminum, Silver, -40 to 194 deg F, 1.224 in Dia
Additional Description: TB -ST050-462 AL JKTD FTG HUB 1/2 IN .525-.650
Catalog Description: Star Teck aluminum jacketed cable fitting. Hub size of 1/2 inch. Range over jacket from 0.525 - 0.650 inch.
Item FeaturesOrdinary Locations
Item Features
Item FeaturesCSA 23086/4484|UL File No. E38947
