Brand: Thomas & Betts

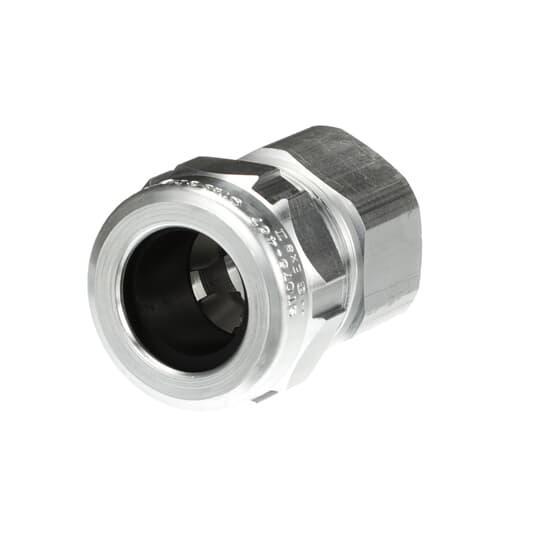

Thomas & Betts ST075-467 Fittings Teck Cable Fitting
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts ST075-467 Fittings Teck Cable Fitting
Brand: Thomas & Betts
Thomas & Betts ST075-467 Fittings Teck Cable Fitting
Part #:ST075-467
SKU #: 2229936
$1213.20/20EA
Key Features
Part #:ST075-467
SKU #: 2229936
Brand: Thomas & Betts
Cable Openings: 0.88 to 1.065, 0.88 to 1.065 in
Dimensions: 2.08 in Dia
Series: Star Teck®
Temperature Rating (Degrees F): -40 to 194, -40 to 194 deg F
Trade Size: 3/4, 3/4 in
$1213.20/20EA
- Easy installation and exclusive power grip
- Provides a grip thats high up on the cable-not on the first convolution-so strip length and cutting of cable are not critical
- Dependable service stainless steel retaining ring, withstands corrosive environments, non-magnetic
- Dependable grounding power grip grounding ring is non-magnetic stainless steel
- Provides 360 deg long term dependable grounding, it makes immediate contact with the cable
- Watertight-tapered neoprene bushing, cone-shaped to provide a secure, tight fit while eliminating cupping or water in vertical installations
- Easy to install in tight spaces low profile gland nut fits tight spaces
- Has grooves for screwdriver installation and flats for a wrench, durable and reusable with funnel entry for easy cable insertion
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Overlapping sizes minimize possibility of mismatched cables and fittings in the field
- 0.77 to 0.985 in cable range over armor
- The original STAR TECK fitting for teck and ACWU cable set the standard for ease of installation, quality engineering and safe, reliable terminations in challenging industrial environments.
- https://youtu.be/fyECcFxJJnk
Specifications
Brand: Thomas & Betts
Cable Openings: 0.88 to 1.065, 0.88 to 1.065 in
Dimensions: 2.08 in Dia
Series: Star Teck®
Temperature Rating (Degrees F): -40 to 194, -40 to 194 deg F
Trade Size: 3/4, 3/4 in
Cable type: ACWU/MC, ACWU/MC/TECK
Color: Silver
Connection type: NPT
Country of origin: CA
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121311
UPC: 00786210712864
Thomas & Betts ST075-467 Fittings Teck Cable Fitting
T&B Fittings Star Teck Teck Cable Fitting, 3/4 in, Cable Openings: 0.88 to 1.065 in, ACWU/MC Cable, NPT, Aluminum, Silver, -40 to 194 deg F, 2.08 in Dia
Additional Description: TB -ST075-467 AL JKTD FTG HUB 3/4 IN .88 - 1.065
Catalog Description: Star Teck aluminum jacketed cable fitting. Hub size of 3/4 inch. Range over jacket from 0.880 - 1.065 inch
Item FeaturesOrdinary Locations
Item Features
Item FeaturesCSA 23086/4484|UL File No. E38947
