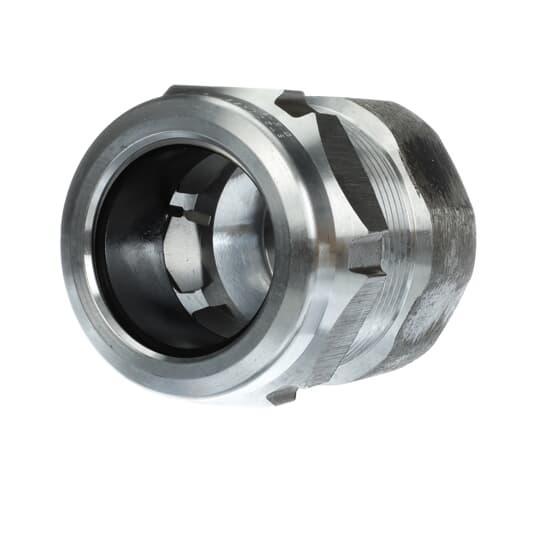

Thomas & Betts ST200-551 Fittings Teck Cable Fitting
Thomas & Betts ST200-551 Fittings Teck Cable Fitting
Part #:ST200-551
SKU #: 2316475
$1053.05/5EA
Key Features
Part #:ST200-551
SKU #: 2316475
Brand: Thomas & Betts
Cable Openings: 1.9 to 2.187 in
Dimensions: 3.62 in Dia
Temperature Rating (Degrees F): -40 to 194 deg F
Trade Size: 2 in
Cable type: ACWU/MC
$1053.05/5EA
- Easy installation and exclusive power grip
- Provides a grip thats high up on the cable-not on the first convolution-so strip length and cutting of cable are not critical
- Dependable service stainless steel retaining ring, withstands corrosive environments, non-magnetic
- Dependable grounding power grip grounding ring is non-magnetic stainless steel
- Provides 360 deg long term dependable grounding, it makes immediate contact with the cable
- Watertight-tapered neoprene bushing, cone-shaped to provide a secure, tight fit while eliminating cupping or water in vertical installations
- Easy to install in tight spaces low profile gland nut fits tight spaces
- Has grooves for screwdriver installation and flats for a wrench, durable and reusable with funnel entry for easy cable insertion
- Provides means for passing armored, metal clad, jacketed cable through a bulkhead or enclosure in hazardous areas
- Form a mechanical grip and water and/or oil resistant seal for cord
- Provide grounding continuity of cable armor
- Overlapping sizes minimize possibility of mismatched cables and fittings in the field
- 1.790 to 2.107 in cable range over armor
- A natural extension of the 10464 Series, the first STAR TECK cable fitting incorporated input from end-users in Canadian industry and was the first teck fitting to use a pop-on design requiring no disassembly.
- Other unique features included a splined gland and gripping features.
- The original STAR TECK fitting for teck and ACWU cable set the standard for ease of installation, quality engineering and safe, reliable terminations in challenging industrial environments.
- https://youtu.be/fyECcFxJJnk
Specifications
Brand: Thomas & Betts
Cable Openings: 1.9 to 2.187 in
Dimensions: 3.62 in Dia
Temperature Rating (Degrees F): -40 to 194 deg F
Trade Size: 2 in
Cable type: ACWU/MC
Color: Silver
Connection type: NPT
Country of origin: CA
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121311
UPC: 00786210712949
Item FeaturesFor passing armored, metal clad, jacketed or unjacketed and unarmored cables through a bulkhead or enclosure in hazardous areas
Item Features
Item FeaturesCSA 23086/4484|UL File No. E38947
