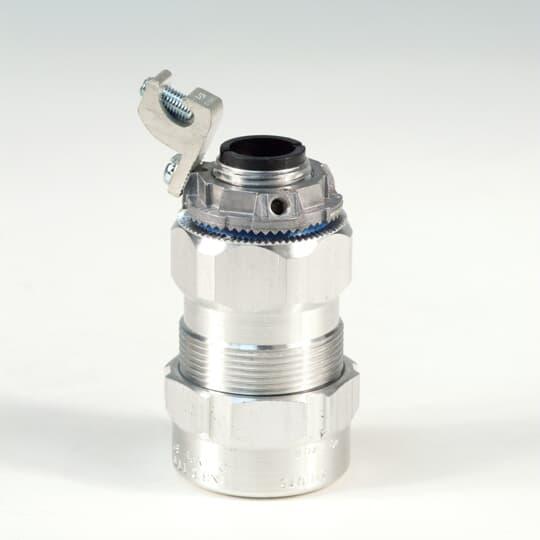

Thomas & Betts STE150GRL Fittings Star Teck Extreme Teck Cable Connector
Image Disclaimers Message
Thomas & Betts STE150GRL Fittings Star Teck Extreme Teck Cable Connector
Thomas & Betts STE150GRL Fittings Star Teck Extreme Teck Cable Connector
Part #:STE150GRL
SKU #: 2426422
$310.02/EA
Key Features
Part #:STE150GRL
SKU #: 2426422
Brand: Thomas & Betts
Cable Openings: 1.44 to 1.965 in
Dimensions: 3.25 in Dia x 4.29 in L
Series: STE
Trade Size: 1-1/2 in
Cable type: ACWU/JMC/MC/TECK
$310.02/EA
- Sharp biting teeth provide superior electrical bonding and allow corrosive liquids to drain away quickly
- Exclusive power grip provides grip high upon cable armor not on first convolution, so precise cable preparation is not critical
- Power grip grounding ring is non-magnetic stainless steel
- It makes immediate contact with the cable during insertion
- Built-in jacket stripping gauge on each fitting
- Low profile gland nut fits tight spaces, has grooves for screwdriver installation and flats for a wrench
- Durable and reusable with funnel entry for easy cable insertion
- 1200 in-lb gland torque, 1-3/4 in L strip
- 1.28 to 1.805 in cable range over armor
- The STAR TECK EXTREME fitting was the industrys first range-taking teck fitting. This fitting simplified matching cables to fittings and reduced the number of different size fittings that had to be inventoried.
- Now one STAR TECK EXTREME fitting could cover the range of three conventional STAR TECK fitting hub sizes. With the STAR TECK EXTREME fitting also came the invention of removable armour stops another feature that has since become an industry standard.
- https://youtu.be/DnG0sTGH0zs
Specifications
Brand: Thomas & Betts
Cable Openings: 1.44 to 1.965 in
Dimensions: 3.25 in Dia x 4.29 in L
Series: STE
Trade Size: 1-1/2 in
Cable type: ACWU/JMC/MC/TECK
Color: Silver
Connection type: NPT
Country of origin: CA
Material: Aluminum
Manufacturer Name: ABB
UNSPSC: 39121311
UPC: 00786210687643
Item FeaturesOrdinary Locations
Item Features
Item FeaturesCSA 23086|UL File No. E38947
