STG1-G

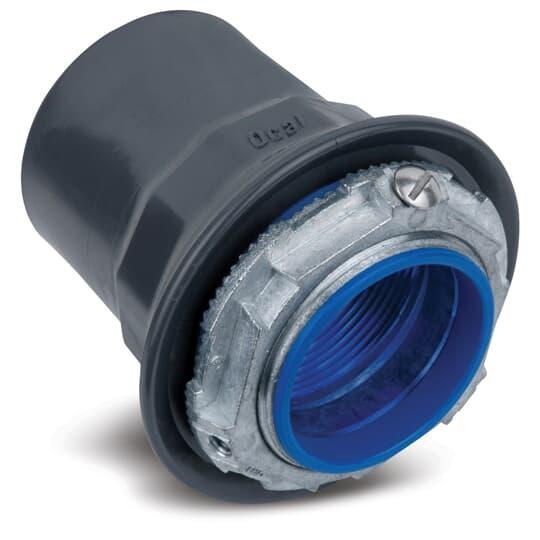

Thomas & Betts STG1-G Ocal Grounding Hub Connector
Part Number # STG1-G
SKU # 2418928
Thomas & Betts STG1-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | STG1-G |
| SKU #: | 2418928 |
| Dimensions: | 1.44 in Dia x 1.56 in H |
| Finish: | PVC Coated |
| Specifications: | 0.19 in THK Panel, 0.59 in Dia Throat |
| Trade Size: | 1/2 in |
| Color: | Dark gray |
| Country of origin: | US |
| Material: | Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00704508408732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts STG1-G Ocal Grounding Hub Connector
Brand: Thomas & Betts
Part Number: STG1-G
Ocal® Grounding Hub Connector, 1/2 in Trade, Locknut Installation, Specifications: 0.19 in THK Panel, 0.59 in Dia Throat, Zinc, PVC Coated, Dark Gray, 1.44 in Dia x 1.56 in H Dimensions
Additional Description: TB -STG1-G PVC CTD ZINC GROUND HUB 1/2IN DGRAY
Catalog Description: PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 1/2 Inch/16 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.59 Inch/14.99 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
STG1-G Application
For use to positively bond conduit to box or enclosureSTG1-G Item Features
- Captive sealing ring wont buckle or slip during installation and provides a complete 360 deg seal even when conduit isnt perpendicular to the enclosure
- Hexagonal/splined body and locknut enable fast and easy installation
- Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure
- Zinc or copper-free aluminum with a nominal 0.04 in (40 mil) PVC coating bonded to exterior - in blue, white, gray or custom colors
- Pressure sealing sleeves protect your connections
- Insulated throat molded from 105 deg C rated thermoplastic, UL94V0 flammability rated
