STG2-G

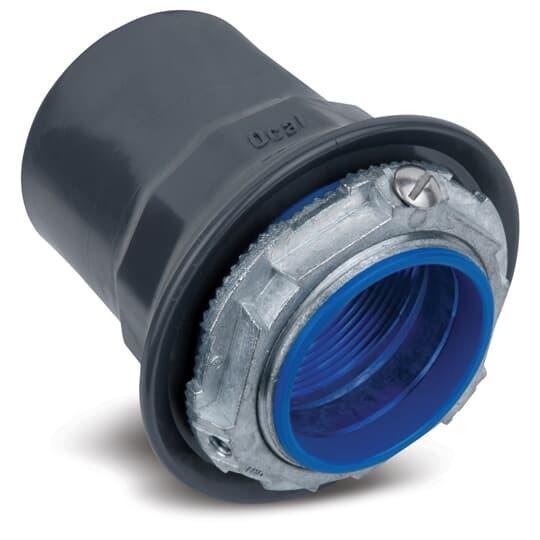

Thomas & Betts STG2-G Ocal Grounding Hub Connector
Part Number # STG2-G
SKU # 2418932
Thomas & Betts STG2-G Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | STG2-G |
| SKU #: | 2418932 |
| Dimensions: | 1.44 in Dia x 1.59 in H |
| Finish: | PVC Coated |
| Trade Size: | 3/4 in |
| Color: | Dark gray |
| Country of origin: | US |
| Material: | Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121311 |
| UPC: | 00704508408824 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts STG2-G Ocal Grounding Hub Connector
Brand: Thomas & Betts
Part Number: STG2-G
Ocal® Grounding Hub Connector, 3/4 in Trade, Locknut Installation, Zinc, PVC Coated, Dark Gray, 1.44 in Dia x 1.59 in H Dimensions
Additional Description: TB -STG2-G PVC CTD ZINC GROUND HUB 3/4IN DGRAY
Catalog Description: PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 3/4 Inch/21 Metric, Overall Diameter 1.44 Inch/36.58 Millimeters, Maximum Panel Thickness 0.19 Inch/4.83 Millimeters, Throat Diameter 0.78 Inch/19.81 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray
STG2-G Application
For use to positively bond conduit to box or enclosureSTG2-G Item Features
- Captive sealing ring wont buckle or slip during installation and provides a complete 360 deg seal even when conduit isnt perpendicular to the enclosure
- Hexagonal/splined body and locknut enable fast and easy installation
- Sharper and deeper teeth provide a more penetrating bite for improved bonding to the enclosure
- Zinc or copper-free aluminum with a nominal 0.04 in (40 mil) PVC coating bonded to exterior - in blue, white, gray or custom colors
- Pressure sealing sleeves protect your connections
- Insulated throat molded from 105 deg C rated thermoplastic, UL94V0 flammability rated
SKU #2418932Part Number #STG2-GUNSPSC39121311UPC00704508408824
