T17-B

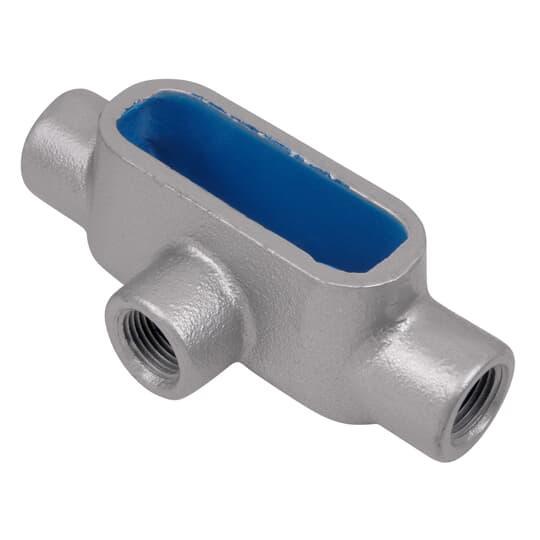

Thomas & Betts T17-B Ocal Conduit Body
Part Number # T17-B
SKU # 2151500
$142.15 / Each
Typical price:$173.17 / Each
Thomas & Betts T17-B Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | T17-B |
| SKU #: | 2151500 |
| Capacity: | 6, 6 cu-in |
| Dimensions: | 5.6 in L x 1.8 in W x 2.35 in H |
| Enclosure: | NEMA 4X |
| Finish: | PVC Coated |
| Form: | 7 |
| Hub Size: | 1/2, 1/2 in |
| Type: | Type T |
| Color: | Light blue |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Iron |
| Manufacturer Name: | ABB |
| UNSPSC: | 39131708 |
| UPC: | 00704508409869 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$142.15 / Each
Typical price:$173.17 / Each
Quantity:
Thomas & Betts T17-B Ocal Conduit Body
Brand: Thomas & Betts
Part Number: T17-B
Ocal Conduit Body, Type T, 1/2 in Hub, 3 Hubs, 6 cu-in Capacity, 7 Form, NEMA 4X Enclosure, Thread Connection, Iron, PVC Coated, Light Blue, 5.6 in L x 1.8 in W x 2.35 in H Dimensions
Additional Description: TB -T17-B (N) COND BODY T SHAPE FRM7 1/2IN LBLUE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: PVC Coated Conduit Body, T Shape, Form 7, Size 1/2 Inch/16 Metric, Iron, Light Blue
T17-B Application
To act as pull outlets for conductors being installedT17-B Item Features
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- Nominal 0.04 in PVC coating bonded to exterior
- Ocal pressure sealing sleeves on all threaded hubs
- Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cu-in capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
- Flat surface molded on conduit body seals with molded flange on cover
T17-B Standards
UL File No. E2969|CSA Certified|Federal Specification WW-C-581E|UL 6SKU #2151500Part Number #T17-BUNSPSC39131708UPC00704508409869
