Brand: Thomas & Betts

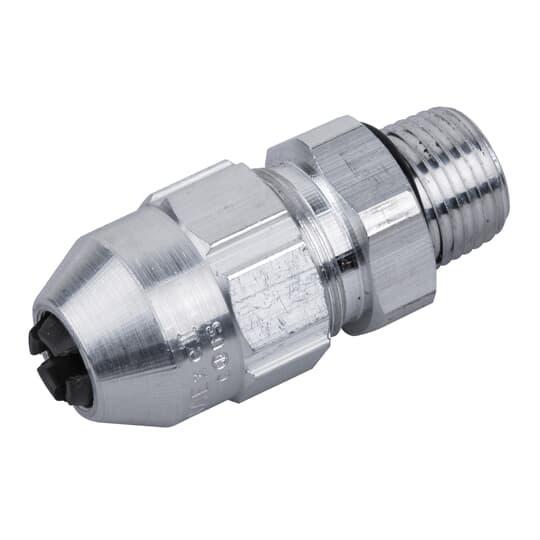

Thomas & Betts TCF075-40AL Silver Grip Tray/Cord Connector
Part Number # TCF075-40AL
SKU # 2146081
$36.50 / Each
Thomas & Betts TCF075-40AL Key Features
Brand: Thomas & Betts
Part Number # TCF075-40AL
SKU #2146081
Cable Openings: 0.25 to 0.4, 0.25 to 0.4 in
Dimensions: 2.92 in L
Series: TCF, TCF®
Temperature Rating (Degrees F): -40 to 90, -40 to 90 deg C
Trade Size: 3/4, 3/4 in
Type: Straight
Cable type: Non-Armored/Portable
Color: Metallic
Connection type: NPT
Country of origin: CA
Material: Copper-Free Aluminum
Manufacturer Name: ABB
UNSPSC: 39121431
UPC: 00786210879215
$36.50 / Each
Thomas & Betts TCF075-40AL Silver Grip Tray/Cord Connector
Brand: Thomas & Betts
Part Number: TCF075-40AL
T&B Silver Grip Tray/Cord Connector, Straight, Series: TCF , 3/4 in, Cable Openings: 0.25 to 0.4 in, Non-Armored/Portable Cable, NPT, Copper-Free Aluminum, Metallic, -40 to 90 deg C, 2.92 in L
Additional Description: TB -TCF075-40AL TRAY & CORD.75 IN AL 0.25-0.40
Catalog Description: Tray/Cord Fitting, Hub Size NPT 3/4 Inch, Cable Diameter 0.250 to 0.400 Inch, Throat Diameter 0.540 Inch, Aluminum
TCF075-40AL Application
For use to safe and cost effective choice for increased safety when terminating portable cord and try cable in hazardous locations, gas and vapor environmentsTCF075-40AL Item Features
- Hand tightens, no tools needed for assembly
- Tapered neoprene bushing and O-ring seal OUT moisture and dirt ingress
- Corrosion-resistant, non-magnetic aluminum construction
- Chuck grip provides high mechanical pullout performance which exceeds applicable requirements
- 0.54 in dia throat
- Gas and vapor environmental condition
- Tray/cord fitting is the safe and cost effective choice for increased safety when terminating portable cord and try cable in hazardous locations
TCF075-40AL Standards
CSA Class 4418-05|CSAus Class 4418-85SKU #2146081Part Number #TCF075-40ALUNSPSC39121431UPC00786210879215
