Brand: Thomas & Betts
TCF125-128AL

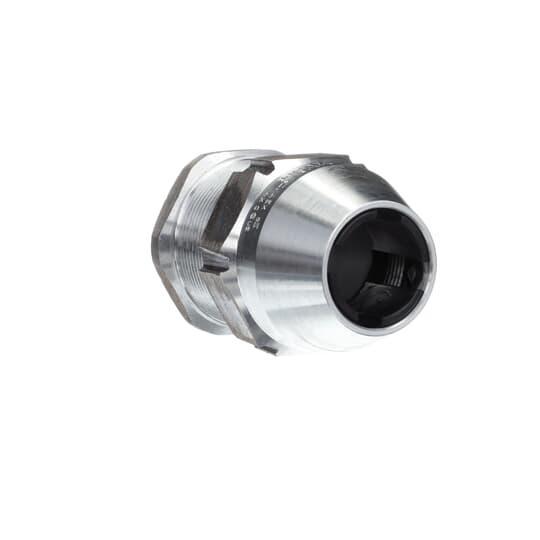

Thomas & Betts TCF125-128AL Silver Grip Tray/Cord Connector
Part Number # TCF125-128AL
SKU # 2237633
$158.11 / Each
Typical price:$211.87 / Each
Thomas & Betts TCF125-128AL Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TCF125-128AL |
| SKU #: | 2237633 |
| Cable Openings: | 1.08 to 1.28, 1.08 to 1.28 in |
| Dimensions: | 4.71 in L |
| Series: | TCF, TCF® |
| Temperature Rating (Degrees F): | -40 to 90, -40 to 90 deg C |
| Trade Size: | 1-1/4, 1-1/4 in |
| Type: | Straight |
| Cable type: | Non-Armored/Portable |
| Color: | Metallic |
| Connection type: | NPT |
| Country of origin: | CA |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210938516 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$158.11 / Each
Typical price:$211.87 / Each
Quantity:
Thomas & Betts TCF125-128AL Silver Grip Tray/Cord Connector
Brand: Thomas & Betts
Part Number: TCF125-128AL
T&B Silver Grip Tray/Cord Connector, Straight, Series: TCF , 1-1/4 in, Cable Openings: 1.08 to 1.28 in, Non-Armored/Portable Cable, NPT, Copper-Free Aluminum, Metallic, -40 to 90 deg C, 4.71 in L
Additional Description: TB -TCF125-128AL TRAY & CORD 1-1/4 IN_AL 1.08-1.28
Catalog Description: Tray/Cord Fitting, Hub Size NPT 1-1/4 Inch, Cable Diameter 1.080 to 1.280 Inch, Throat Diameter 1.255 Inch, Aluminum
TCF125-128AL Application
For use to safe and cost effective choice for increased safety when terminating portable cord and try cable in hazardous locations, gas and vapor environmentsTCF125-128AL Item Features
- Hand tightens, no tools needed for assembly
- Tapered neoprene bushing and O-ring seal OUT moisture and dirt ingress
- Corrosion-resistant, non-magnetic aluminum construction
- Chuck grip provides high mechanical pullout performance which exceeds applicable requirements
- 1.255 in dia throat
- Gas and vapor environmental condition
- Tray/cord fitting is the safe and cost effective choice for increased safety when terminating portable cord and try cable in hazardous locations
TCF125-128AL Standards
CSA Class 4418-05|CSAus Class 4418-85SKU #2237633Part Number #TCF125-128ALUNSPSC39121431UPC00786210938516
