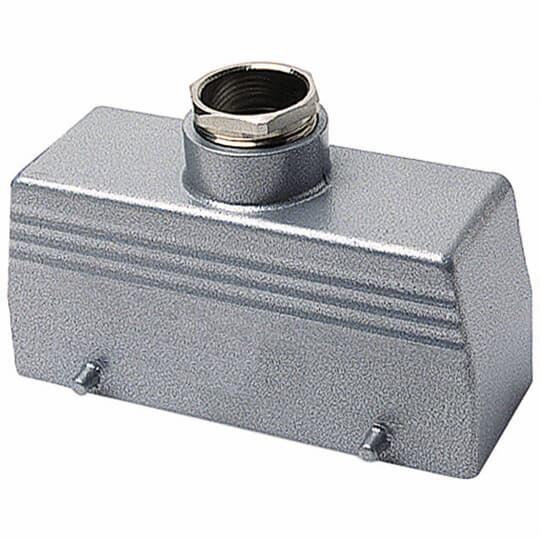

Thomas & Betts TH216MV Pos-E-Kon Double Post Hood
Thomas & Betts TH216MV Pos-E-Kon Double Post Hood
Part #:TH216MV
SKU #: 2292333
$105.04/EA
Key Features
Part #:TH216MV
SKU #: 2292333
Brand: Thomas & Betts
Entry Type: 1 x 3/4 in NPT
Finish: Epoxy Powder Coated
Series: B Series
Specifications: 16 A, 600 VAC
Suitable For Use With: B Series Connector
$105.04/EA
- 16 contacts with ground
- IP65 locked positions internal protection per DIN VDE 0470
- B16 double lock system 1 x PG21-3/4 connection
Specifications
Brand: Thomas & Betts
Entry Type: 1 x 3/4 in NPT
Finish: Epoxy Powder Coated
Series: B Series
Specifications: 16 A, 600 VAC
Suitable For Use With: B Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Country of origin: DE
Material: Die Cast Aluminum
Mounting type: Standard
Manufacturer Name: ABB
UNSPSC: 39121424
UPC: 00786209987167
Thomas & Betts TH216MV Pos-E-Kon Double Post Hood
Pos-E-Kon Double Post Hood, Series: B Series, Top Entry Position, 1 x 3/4 in NPT Entry, Standard Mounting, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 16 A, 600 VAC, Die Cast Aluminum, Epoxy Powder Coated
Additional Description: TB -TH216MV B16 TOP ENT DBL POST HOOD1XPG21-3/4
Catalog Description: Top entry double post hood, NPT entry-1 Inch x 3/4 Inch
Item FeaturesGaskets
Item Features
Item FeaturesCSA Certified|UL File No. E215386|IEC 529|VDE 0470
