Brand: Thomas & Betts

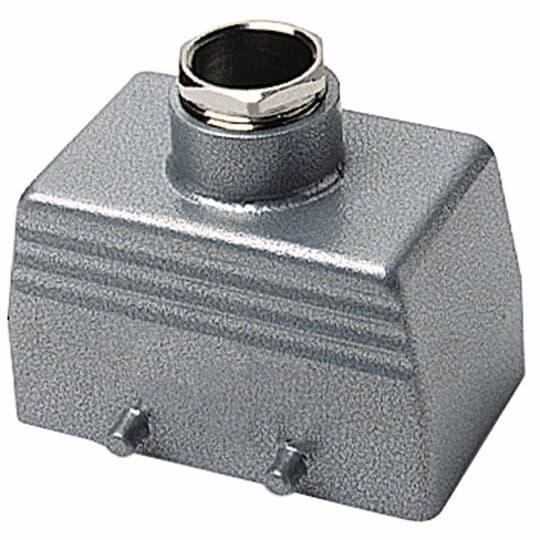

Thomas & Betts TH324MV Pos-E-Kon Double Post Hood
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts TH324MV Pos-E-Kon Double Post Hood
Brand: Thomas & Betts
Thomas & Betts TH324MV Pos-E-Kon Double Post Hood
Part #:TH324MV
SKU #: 2233232
$152.21/EA
Key Features
Part #:TH324MV
SKU #: 2233232
Brand: Thomas & Betts
Entry Type: 1 x 1 in NPT
Finish: Epoxy Powder Coated
Series: B Series
Specifications: 10 A, 16 A, 600 VAC
Suitable For Use With: B Series Connector
$152.21/EA
- 24 contacts with ground
- IP65 locked positions internal protection per DIN VDE 0470
- B24 double lock system 1 x PG29-1 connection
Specifications
Brand: Thomas & Betts
Entry Type: 1 x 1 in NPT
Finish: Epoxy Powder Coated
Series: B Series
Specifications: 10 A, 16 A, 600 VAC
Suitable For Use With: B Series Connector
Temperature Rating (Degrees F): -40 to 257, -40 to 257 deg F
Country of origin: DE
Material: Die Cast Aluminum
Mounting type: Standard
Manufacturer Name: ABB
UNSPSC: 39121424
UPC: 00786209987181
Thomas & Betts TH324MV Pos-E-Kon Double Post Hood
Pos-E-Kon Double Post Hood, Series: B Series, Top Entry Position, 1 x 1 in NPT Entry, Standard Mounting, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 10 A, 16 A, 600 VAC, Die Cast Aluminum, Epoxy Powder Coated
Additional Description: TB -TH324MV TOP ENTRY DBL POST HOOD 1X1IN B24
Catalog Description: Top entry double post hood, NPT entry-1 Inch x 1 Inch
Item FeaturesGaskets
Item Features
Item FeaturesCSA 70013|UL File No. E215386|IEC 529|VDE 0470
