Part Number # TV10-38R-L
SKU # 2347241
TV10-38R-L

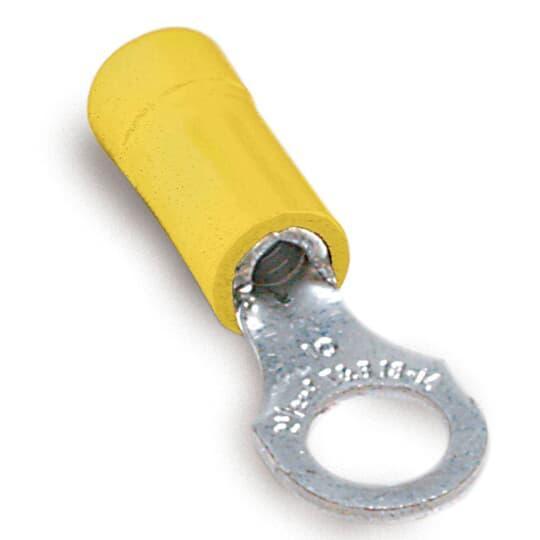

Thomas & Betts TV10-38R-L Sta-Kon Ring Terminal
Part Number # TV10-38R-L
SKU # 2347241
$28.88 / 50Each
Thomas & Betts TV10-38R-L Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TV10-38R-L |
| SKU #: | 2347241 |
| Specifications: | 0.531 in Clearance, Vinyl Insulation |
| Length: | 1.339 in |
| UNSPSC: | 39121432 |
| UPC: | 00786209937490 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$28.88 / 50Each
Quantity:
- Catamount Ring Terminal, Series: T Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.339 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.134 in ID x 0.252 in OD Barrel, Ring Tongue, 0.591 in W x 0.039 in THK Tongue, 600 V, Specifications: 0.531 in Clearance, Vinyl Insulation, 75 deg C, Copper, Tin Plated, Yellow
TV10-38R-L Application
For WT112M and CM2000A toolsTV10-38R-L Item Features
- Vinyl insulated to offer enhanced protection and durability
- Features internal barrel serrations for enhanced tensile strength, brazed seam connection for high conductivity
- Terminal has a molded funnel entry insulator for easy installation
- 50 pieces/pack
TV10-38R-L Standards
UL E9809 / UL E9809SKU #2347241Part Number #TV10-38R-LUNSPSC39121432UPC00786209937490
Image provided may only be a representation of final product and may include optional equipment
