TV10-516R-L

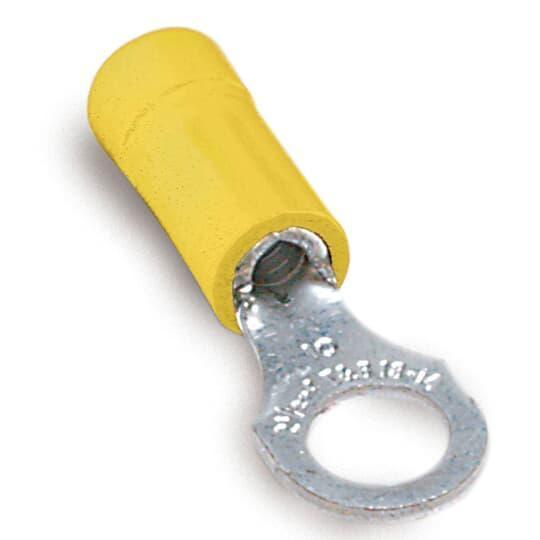

Thomas & Betts TV10-516R-L Sta-Kon Ring Terminal
Part Number # TV10-516R-L
SKU # 2268128
$24.11 / 50Each
Thomas & Betts TV10-516R-L Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TV10-516R-L |
| SKU #: | 2268128 |
| Barrel Size: | 0.134 in ID x 0.252 in OD |
| Barrel Type: | Brazed Seam, Brazed Seam/Funnel Entry/Internal Serration |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Finish: | TiN Coated, Tin Plated |
| Series: | T Series, TV Series |
| Specifications: | 0.531 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 75, 75 deg C |
| Tongue Size: | 0.591 in W x 0.039 in THK |
| Tongue Type: | Ring |
| Type: | High Strength Insulated |
| Color: | Yellow |
| Country of origin: | TW |
| Length: | 1.339, 1.339 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786209937513 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$24.11 / 50Each
Quantity:
- Catamount Ring Terminal, Series: T Series, 12 to 10 AWG Conductor, 5/16 in Stud, 1.339 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.134 in ID x 0.252 in OD Barrel, Ring Tongue, 0.591 in W x 0.039 in THK Tongue, 600 V, Specifications: 0.531 in Clearance, Vinyl Insulation, 75 deg C, Copper, Tin Plated, Yellow
TV10-516R-L Application
For WT112M and CM2000A toolsTV10-516R-L Item Features
- Vinyl insulated to offer enhanced protection and durability
- Features internal barrel serrations for enhanced tensile strength, brazed seam connection for high conductivity
- Terminal has a molded funnel entry insulator for easy installation
- 50 pieces/pack
TV10-516R-L Standards
CSA Certified|UL94 V-0 Flammability Rated|UL File No. E9809|UL ListedSKU #2268128Part Number #TV10-516R-LUNSPSC39121432UPC00786209937513
