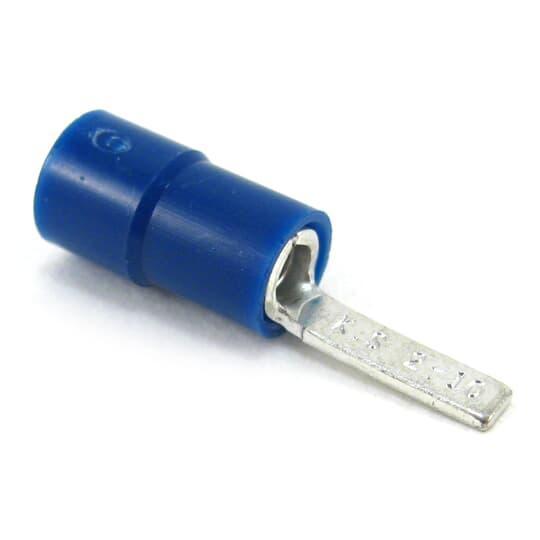

Thomas & Betts TV14-10BL-XV Sta-Kon Blade Terminal
Thomas & Betts TV14-10BL-XV Sta-Kon Blade Terminal
Part #:TV14-10BL-XV
SKU #: 2188110
$24.00/75EA
Key Features
Part #:TV14-10BL-XV
SKU #: 2188110
Brand: Thomas & Betts
Conductor Size: 16 to 14 AWG
Conductor Type: Copper
Dimensions: 0.177 in Dia
Finish: Electro-TiN Plated
Overall Length: 0.819 in
$24.00/75EA
- Vinyl insulated
- Molded funnel entry insulator
- Internal barrel serrations
- Brazed seam
- Application tool WT112M, CM2000A
Specifications
Brand: Thomas & Betts
Conductor Size: 16 to 14 AWG
Conductor Type: Copper
Dimensions: 0.177 in Dia
Finish: Electro-TiN Plated
Overall Length: 0.819 in
Specifications: 0.031 in Blade THK
Temperature Rating (Degrees F): 75 deg C
Type: Insulated
Voltage Rating: 600 VAC
Color: Blue
Country of origin: TW
Material: Copper
Manufacturer Name: ABB
UNSPSC: 39121432
UPC: 00728494144610
Thomas & Betts TV14-10BL-XV Sta-Kon Blade Terminal
Catamount Blade Terminal, Insulated, Copper Conductor, 16 to 14 AWG Conductor, 0.394 in Blade Length, 0.094 in Blade Width, 0.819 in Overall Length, 600 VAC, Specifications: 0.031 in Blade THK, 75 deg C, Copper, Electro-Tin Plated, Blue, 0.177 in Dia
Additional Description: TB -TV14-10BL-XV VIN INSUL BLADE TERM 16-14 BLUE
Catalog Description: Insulated Vinyl Blade Terminal, Wire Range 16-14 AWG, Blue, Canister, Reusable Packaging
Item FeaturesFor use in din style blade terminal blocks
Item Features
Item FeaturesUL94 V-0 Flammability Rated|UL File No. E9809
