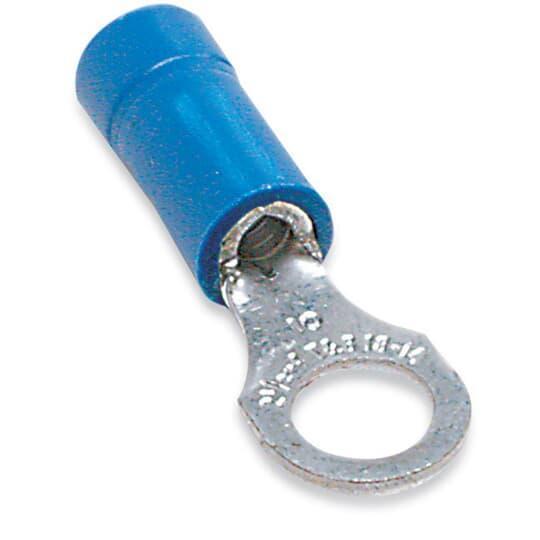

Thomas & Betts TV14-38R-L Sta-Kon Ring Terminal

2199116 MFG #: TV14-38R-L
$16.50 / EA
Usually Ships within 5-8 Days
  • Barrel Size: 0.091 in ID x 0.177 in OD
  • Barrel Type: Brazed Seam, Brazed Seam/Funnel Entry/Internal Serration
  • Conductor Size: 16 to 14
  • Finish: TiN Coated, Tin Plated
  • Series: T Series, TV Series
  • Specifications: 0.547 in Clearance, Vinyl Insulation
  • Temperature Rating (Degrees F): 75
  • Tongue Size: 0.535 in W x 0.031 in THK
  • Tongue Type: Ring
  • Type: High Strength Insulated
  • Voltage Rating: 600
  • Color: Blue
  • Length: 1.24
  • Material: Copper

Thomas & Betts TV14-38R-L Sta-Kon Ring Terminal

Catamount® Ring Terminal, Series: T Series, 16 to 14 AWG Conductor, 3/8 in Stud, 1.24 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.091 in ID x 0.177 in OD Barrel, Ring Tongue, 0.535 in W x 0.031 in THK Tongue, 600 V, Specifications: 0.547 in Clearance, Vinyl Insulation, 75 deg C, Copper, Tin Plated, Blue

Additional Description: TB -TV14-38R-L VINYL INS RING TERMINAL 16-14 No38

Catalog Description: Insulated Vinyl Ring Terminal for Wire Range 16-14 Stud Size 3/8, Blue

  • Specifications
  • Vinyl insulated to offer enhanced protection and durability
  • Features internal barrel serrations for enhanced tensile strength, brazed seam connection for high conductivity
  • Terminal has a molded funnel entry insulator for easy installation
  • 50 pieces/pack
