TV14-BS-L

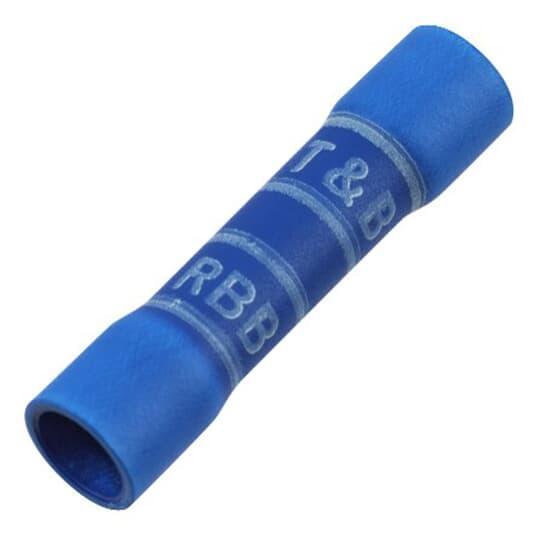

Thomas & Betts TV14-BS-L Sta-Kon Butt Splice
Part Number # TV14-BS-L
SKU # 2216516
$17.03 / 50Each
Thomas & Betts TV14-BS-L Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TV14-BS-L |
| SKU #: | 2216516 |
| Barrel Type: | Brazed Seam, Brazed Seam/Expanded Entry/Internal Serration |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Conductor Type: | Copper |
| Dimensions: | 0.091 in ID x 0.177 in OD |
| Finish: | TiN Coated, Tin Plated |
| Specifications: | Vinyl Insulation |
| Temperature Rating (Degrees F): | 75, 75 deg C |
| Type: | Vinyl Insulated |
| Color: | Blue |
| Country of origin: | TW |
| Length: | 0.986, 0.986 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121449 |
| UPC: | 00786209937810 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.03 / 50Each
Quantity:
- Catamount Butt Splice, Copper Conductor, 16 to 14 AWG Conductor, 0.986 in Length, Brazed Seam/Expanded Entry/Internal Serration Barrel, 600 V, Specifications: Vinyl Insulation, 75 deg C, Copper, Blue, Tin Plated, 0.091 in ID x 0.177 in OD
TV14-BS-L Item Features
- Expanded entry vinyl insulated
- Internal barrel serrations
TV14-BS-L Standards
CSA Certified|UL File No. E9809SKU #2216516Part Number #TV14-BS-LUNSPSC39121449UPC00786209937810
