Thomas & Betts TV8-516R-L Sta-Kon Ring Terminal
Part Number # TV8-516R-L
SKU # 2348489
TV8-516R-L
Thomas & Betts TV8-516R-L Sta-Kon Ring Terminal
Part Number # TV8-516R-L
SKU # 2348489
Thomas & Betts TV8-516R-L Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | TV8-516R-L |
| SKU #: | 2348489 |
| Specifications: | 0.543 in Clearance, Vinyl Insulation |
| UNSPSC: | 39121432 |
| UPC: | 00786209938114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts TV8-516R-L Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: TV8-516R-L

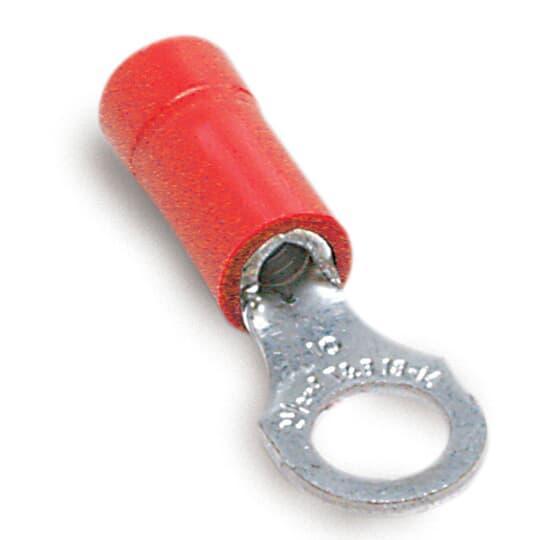

Catamount Ring Terminal, Series: T Series, 8 AWG Conductor, 5/16 in Stud, 1.469 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, 0.177 in ID x 0.315 in OD Barrel, Ring Tongue, 0.591 in W x 0.047 in THK Tongue, 600 V, Specifications: 0.543 in Clearance, Vinyl Insulation, 75 deg C, Copper, Tin Plated, Red
Additional Description: TB -TV8-516R-L (N) VNYL INS RNG TERM No8 5/16 IN STUD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Insulated Vinyl Ring Terminal for Wire Range 8 Stud Size 5/16, Red
TV8-516R-L Application
For TBM6S toolsTV8-516R-L Item Features
- Vinyl insulated to offer enhanced protection and durability
- Features internal barrel serrations for enhanced tensile strength, brazed seam connection for high conductivity
- Terminal has a molded funnel entry insulator for easy installation
- 50 pieces/pack
TV8-516R-L Standards
CSA Certified|UL94 V-0 Flammability Rated|UL File No. E9809|UL ListedSKU #2348489Part Number #TV8-516R-LUNSPSC39121432UPC00786209938114
Image provided may only be a representation of final product and may include optional equipment
